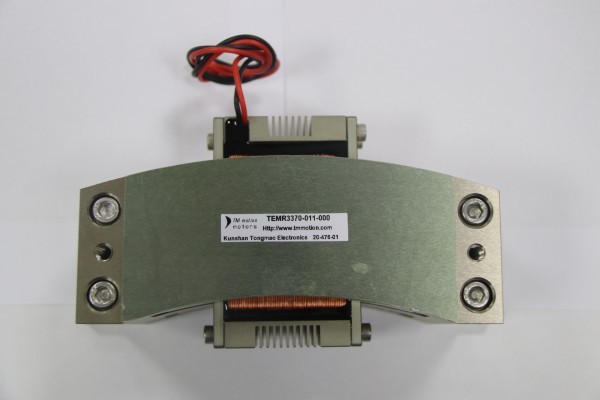

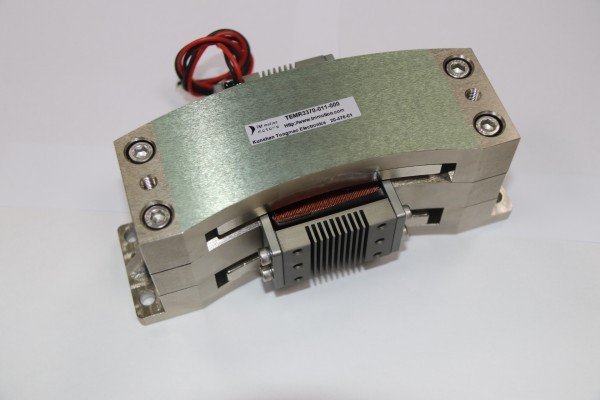

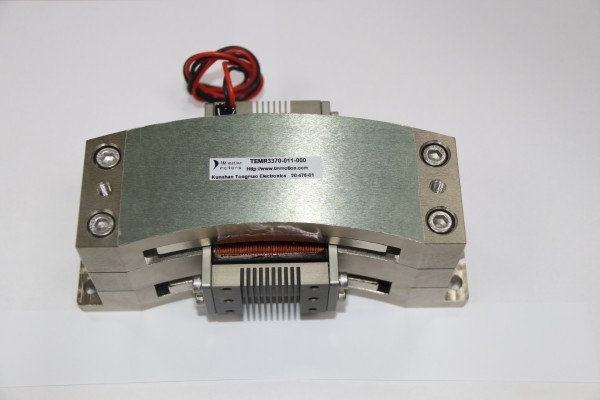

TMER3370-011-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMER1690-011-000 (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	4.2
Peak Voltage	Vp	VOLTS (V)	27.3
Peak Current	Ip	AMPS (A)	6.5
Torque Constant	Kt	N-m / A	2.6
Back EMF	Kb	V/Rad/Sec	2.6
Inductance	L	mH	4.4
Peak Torque	Fp	N-m	16.9
Continuous Torque	Tcs	N-m	4.7
Motor Constant	Ka	N-m/√W	1.3
Time Constant	Te	milli-sec (ms)	1.05
Peak Power	Pp	W (Watts)	177.5
Rotation Angle	S	degree (°)	11
Single-Side Air Gap	CL	mm (Millimeters)	1.0
Thermal Resistance	θth	°C/W	4.7
Winding Temperature	Tmax	°C (Celsius)	120
Coil Weight	WTc	Kg (Kilograms)	0.32
Moment of Inertia	Ic	Kg-cm²	96.8
Magnet Weight	WTf	Kg (Kilograms)	3.4
Motor Weight	Wta	Kg (Kilograms)	3.72
Total Length	L	mm (Millimeters)	174
Total Width	W	mm (Millimeters)	87.8
Total Height	H	mm (Millimeters)	66

I want to customize：TMER3370-011-000
