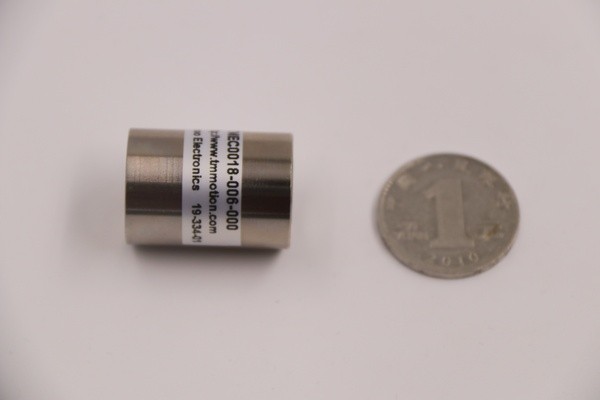

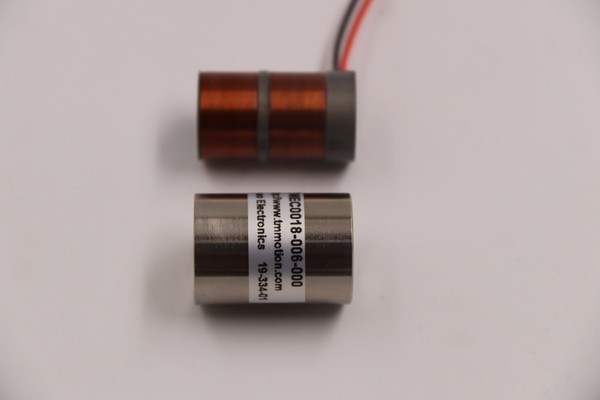

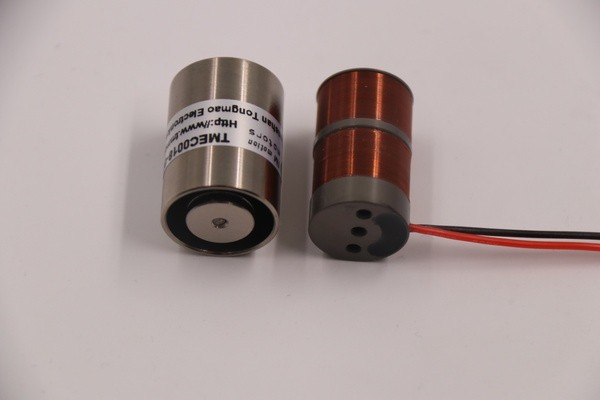

TMEC0018-006-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0018-006-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	5.5
Peak Voltage	Vp	VOLTS(V)	18.0
Peak Current	Ip	AMPS(A)	3.3
Force Constant	Kf	N/A	5.6
Back EMF Constant	Kb	V/(m·s)	5.6
Inductance	L	mH	0.73
Peak Force	Fp	N	18.3
Continuous Thrust	Fc	N	5.64
Motor Constant	Ka	N/√W	2.4
Electrical Time Constant	Te	ms	0.13
Peak Power	Pp	W	58.7
Peak Stroke	S	mm	6.0
Single-sided Air Gap	CL	mm	0.5
Thermal Resistance	θth	℃/W	17.0
Maximum Winding Temperature	Tmax	℃	120.0
Coil Weight	WTc	g	16.0
Magnet Weight	WTf	g	38.0
Total Motor Weight	Wta	g	54.0
Total Motor Length	L	mm	40.5
Outer Diameter	ФD	mm	20.0
