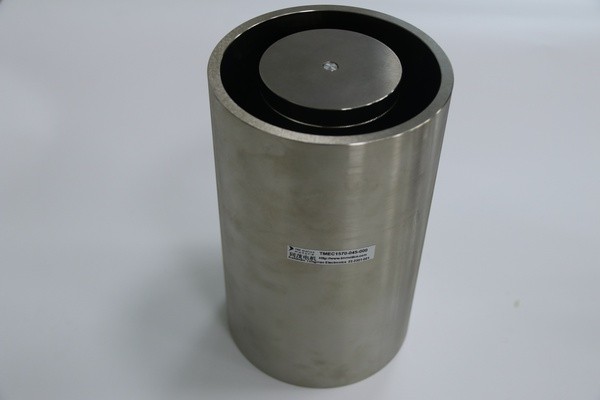

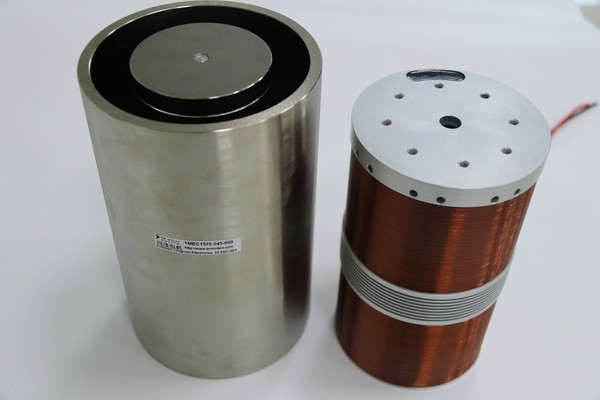

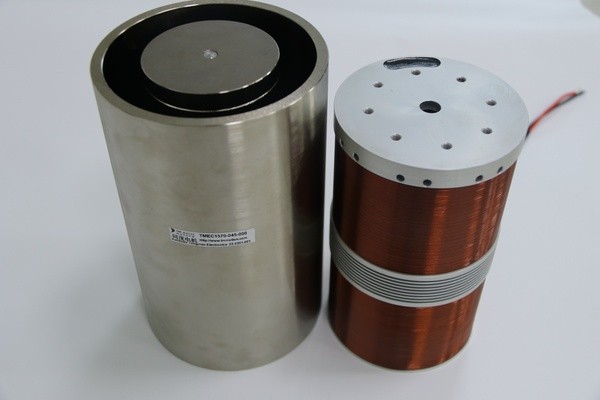

TMEC1570-045-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name			TMEC1570-045-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	9.7
Peak Voltage	Vp	VOLTS(V)	137.8
Peak Current	Ip	AMPS(A)	14.2
Force Constant	Kf	N/A	110.5
Back EMF Constant	Kb	V/M/Sec	110.5
Inductance	L	mH	17.6
Peak Force	Fp	N	1570.0
Continuous Thrust	Fc	N	347.9
Motor Constant	Ka	N/√W	35.5
Electrical Time Constant	Te	ms	1.8
Peak Power	Pp	W	1958.2
Peak Stroke	S	mm	45.0
Single-side Air Gap	CL	mm	4.0
Thermal Resistance	θth	C/W(℃/W)	1.3
Maximum Winding Temperature	Tmax	C(℃)	150.0
Coil Weight	WTc	Kg	2.6
Magnet Weight	WTf	Kg	9.4
Total Motor Weight	Wta	Kg	12.0
Total Motor Length	L	mm	253.4
Outer Diameter	ФD	mm	120.0

I want to customize：TMEC1570-045-000
