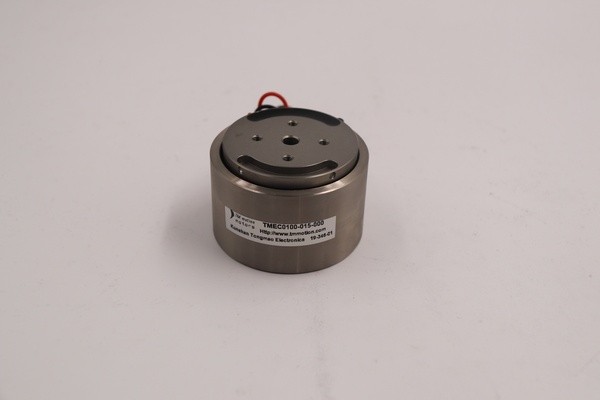

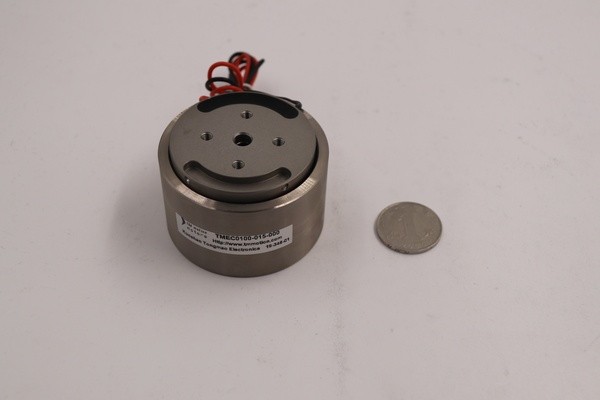

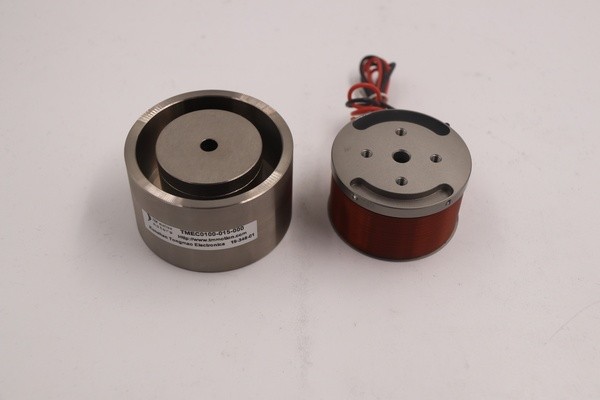

TMEC0100-015-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0100-015-000 Voice Coil Motor
DC Resistance	R	Ohms(Ω)	2.2
Peak Voltage	Vp	Volts(V)	19.2
Peak Current	Ip	Amps(A)	8.7
Force Constant	Kf	N/A	11.5
Back EMF Constant	Kb	Volts per Meter per Second(V/(m·s))	11.5
Inductance	L	Millihenry(mH)	2.2
Peak Force	Fp	Newton(N)	100.0
Continuous Thrust	Fc	Newton(N)	35.5
Motor Constant	Ka	Newton per Square Root of Watt(N/√W)	7.8
Electrical Time Constant	Te	Millisecond(ms)	1.0
Peak Power	Pp	Watt(W)	167.0
Peak Displacement	S	Millimeter(mm)	15.0
Single-side Air Gap	CL	Millimeter(mm)	0.5
Thermal Resistance	θth	Celsius per Watt(°C/W)	6.0
Maximum Winding Temperature	Tmax	Celsius(°C)	150.0
Coil Weight	WTc	Gram(g)	150.0
Magnet Weight	WTf	Gram(g)	570.0
Total Motor Weight	Wta	Gram(g)	720.0
Total Motor Length	L	Millimeter(mm)	56.0
Outer Diameter	ФD	Millimeter(mm)	60.0
Center Hole Diameter	Фd	Millimeter(mm)	6.0
