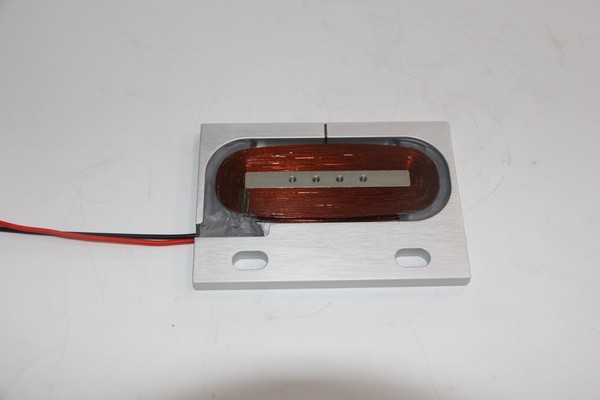

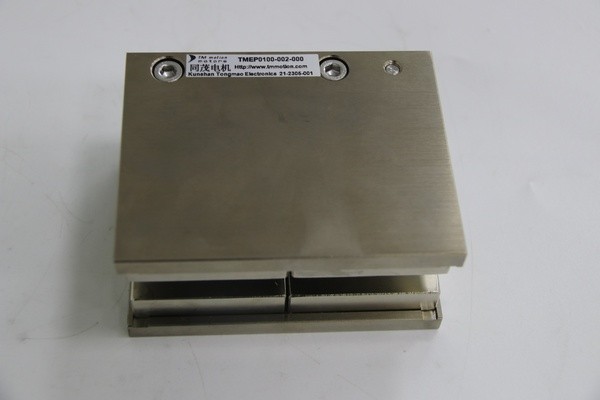

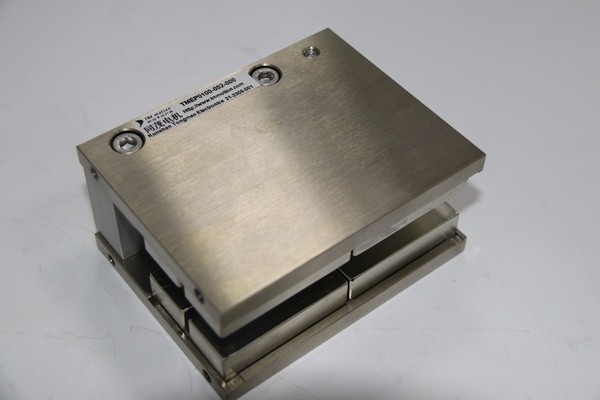

TMEP0100-002-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEP0100-002-000 (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	33
Peak Voltage	Vp	VOLTS (V)	41.2
Peak Current	Ip	AMPS (A)	1.25
Force Constant	Kf	N/A	80.3
Back EMF	Kb	V/M/Sec	80.3
Inductance	L	mH	22
Peak Force	Fp	N	100
Continuous Thrust	Fc	N	47
Motor Constant	Ka	N/√W	14
Time Constant	Te	milli-sec (ms)	0.7
Peak Power	Pp	W (Watts)	55.2
Peak Displacement	S	mm (Millimeters)	2.0
Single-Side Air Gap	CL	mm (Millimeters)	2.0
Thermal Resistance	θth	°C/W	9
Winding Temperature	Tmax	°C (Celsius)	155
Coil Weight	WTc	Kg (Kilograms)	0.25
Magnet Weight	WTf	Kg (Kilograms)	1.9
Motor Weight	Wta	Kg (Kilograms)	2.15
Total Length	L	mm (Millimeters)	105.1
Total Width	W	mm (Millimeters)	110
Total Height	H	mm (Millimeters)	44
