| Parameter | Symbol | Unit | Value |
|---|---|---|---|

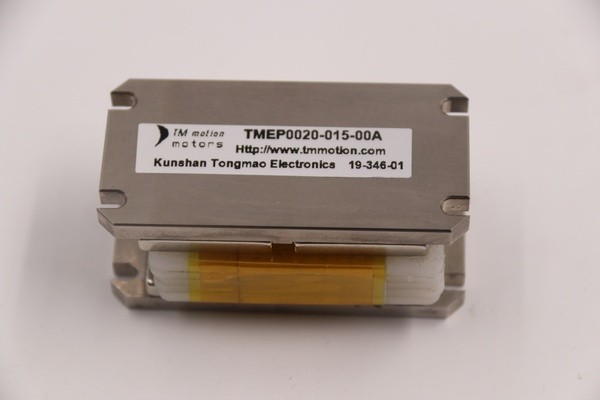

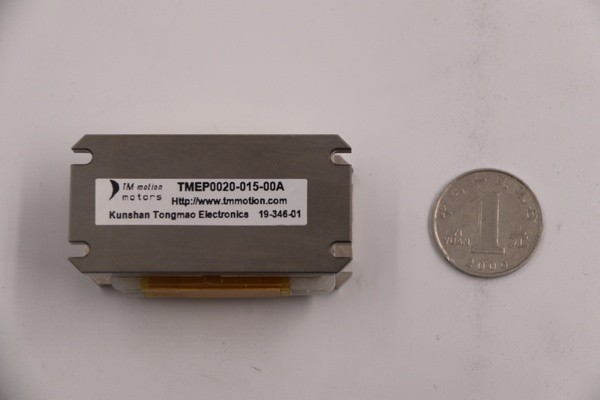

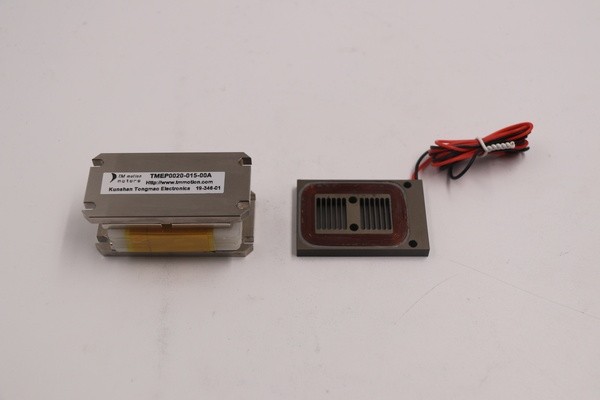

| Product Name | - | - | TMEP0020-015-00A (Voice Coil Motor) |
| DC Resistance | R | OHMS (Ω) | 3.7 |
| Peak Voltage | Vp | VOLTS (V) | 18.9 |
| Peak Current | Ip | AMPS (A) | 5.1 |
| Force Constant | Kf | N/A | 3.9 |
| Back EMF | Kb | V/M/Sec | 3.9 |
| Inductance | L | mH | 0.6 |
| Peak Force | Fp | N | 20 |
| Continuous Thrust | Fc | N | 5.2 |
| Motor Constant | Ka | N/√W | 2.1 |
| Time Constant | Te | milli-sec (ms) | 0.16 |
| Peak Power | Pp | W (Watts) | 97.3 |
| Peak Displacement | S | mm (Millimeters) | 15.0 |
| Single-Side Air Gap | CL | mm (Millimeters) | 0.4 |
| Thermal Resistance | θth | °C/W | 16.5 |
| Winding Temperature | Tmax | °C (Celsius) | 155 |
| Coil Weight | WTc | g (Grams) | 30 |
| Magnet Weight | WTf | g (Grams) | 190 |
| Motor Weight | Wta | g (Grams) | 220 |
| Total Length | L | mm (Millimeters) | 60 |
| Total Width | W | mm (Millimeters) | 50 |
| Total Height | H | mm (Millimeters) | 21.5 |
