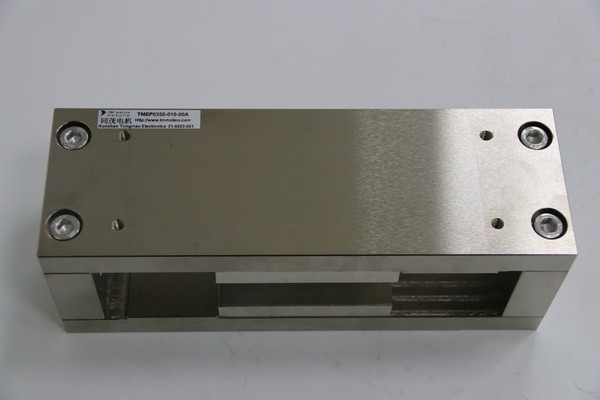

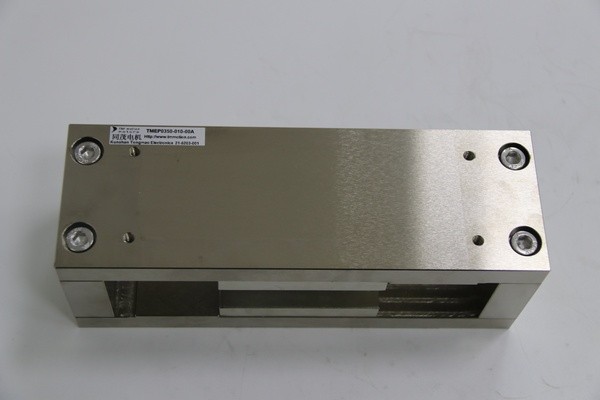

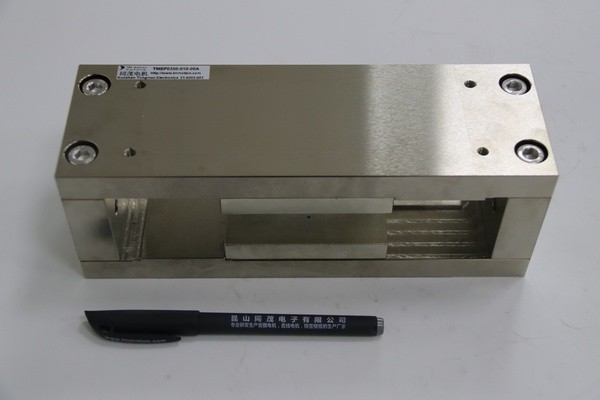

TMEP0350-010-00A|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEP0350-010-00A (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	10.1
Peak Voltage	Vp	VOLTS (V)	77.4
Peak Current	Ip	AMPS (A)	7.7
Force Constant	Kf	N/A	45.7
Back EMF	Kb	V/M/Sec	45.7
Inductance	L	mH	10.6
Peak Force	Fp	N	350
Continuous Thrust	Fc	N	105.8
Motor Constant	Ka	N/√W	14.4
Time Constant	Te	milli-sec (ms)	1.1
Peak Power	Pp	W (Watts)	592
Peak Displacement	S	mm (Millimeters)	10.0
Single-Side Air Gap	CL	mm (Millimeters)	1.5
Thermal Resistance	θth	°C/W	2.4
Winding Temperature	Tmax	°C (Celsius)	155
Coil Weight	WTc	Kg (Kilograms)	1.6
Magnet Weight	WTf	Kg (Kilograms)	6
Motor Weight	Wta	Kg (Kilograms)	7.6
Total Length	L	mm (Millimeters)	224
Total Width	W	mm (Millimeters)	150
Total Height	H	mm (Millimeters)	77.5
