| Parameter | Symbol | Unit | Value |
|---|---|---|---|

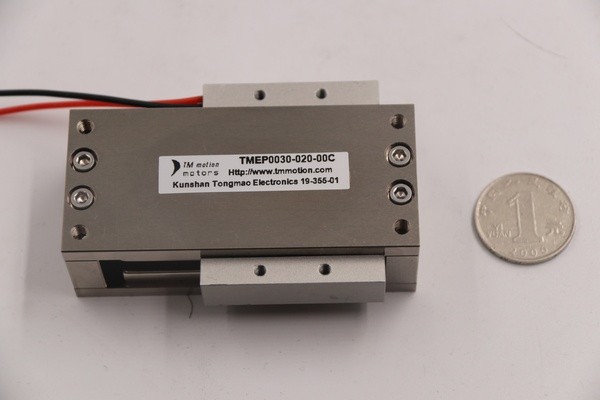

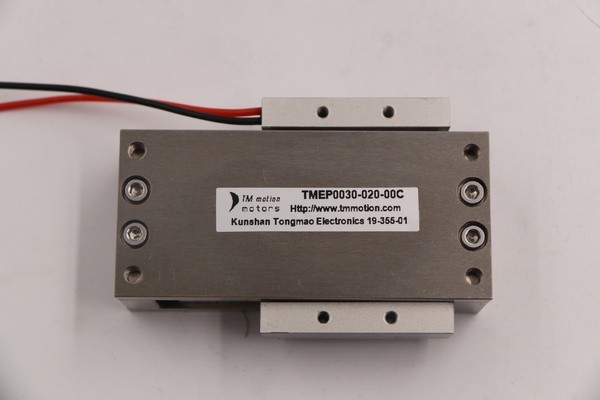

| Product Name | - | - | TMEP0030-020-00C (Voice Coil Motor) |
| DC Resistance | R | OHMS (Ω) | 3.8 |
| Peak Voltage | Vp | VOLTS (V) | 24.0 |
| Peak Current | Ip | AMPS (A) | 3.9 |
| Force Constant | Kf | N/A | 8.0 |
| Back EMF | Kb | V/M/Sec | 8.0 |
| Inductance | L | mH | 1.3 |
| Peak Force | Fp | N | 30.7 |
| Continuous Thrust | Fc | N | 10.9 |
| Motor Constant | Ka | N/√W | 4.1 |
| Time Constant | Te | milli-sec (ms) | 0.34 |
| Peak Power | Pp | W (Watts) | 55.9 |
| Peak Displacement | S | mm (Millimeters) | 20.0 |
| Single-Side Air Gap | CL | mm (Millimeters) | 0.6 |
| Thermal Resistance | θth | °C/W | 15.0 |
| Winding Temperature | Tmax | °C (Celsius) | 155 |
| Coil Weight | WTc | g (Grams) | 50 |
| Magnet Weight | WTf | g (Grams) | 460 |
| Motor Weight | Wta | g (Grams) | 510 |
| Total Length | L | mm (Millimeters) | 83 |
| Total Width | W | mm (Millimeters) | 54 |
| Total Height | H | mm (Millimeters) | 26.1 |
