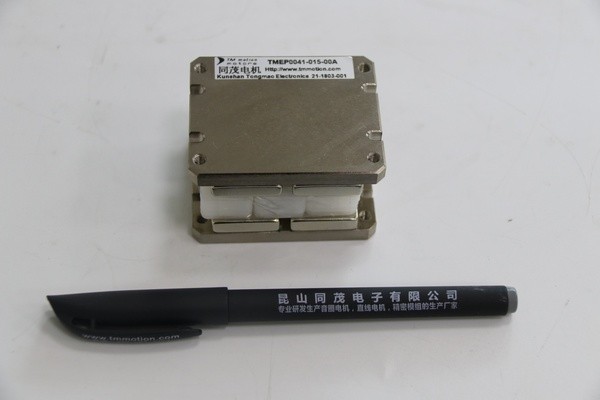

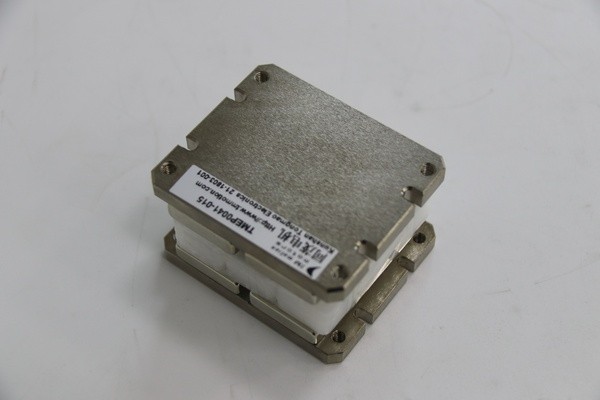

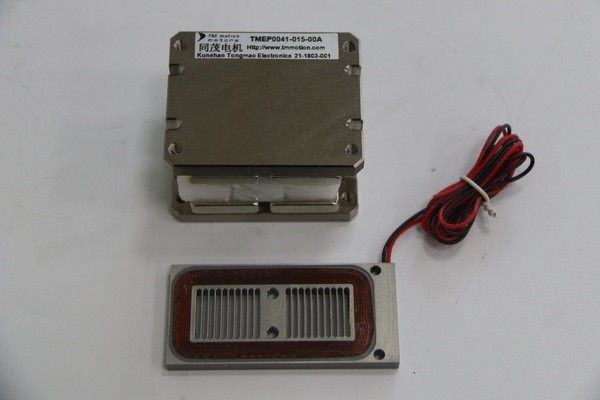

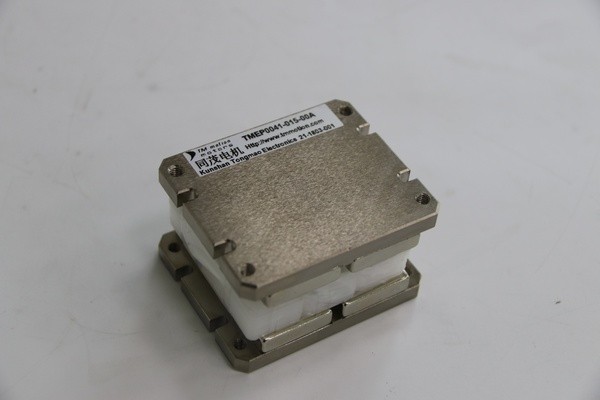

TMEP0041-015-00A|TM

Voice coil motor

Whatsapp：0086-18994336588

1/4

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEP0041-015-00A (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	4.4
Peak Voltage	Vp	VOLTS (V)	20.1
Peak Current	Ip	AMPS (A)	4.6
Force Constant	Kf	N/A	9.2
Back EMF	Kb	V/M/Sec	9.2
Inductance	L	mH	0.9
Peak Force	Fp	N	41.9
Continuous Thrust	Fc	N	11.8
Motor Constant	Ka	N/√W	4.4
Time Constant	Te	milli-sec (ms)	0.2
Peak Power	Pp	W (Watts)	91.3
Peak Displacement	S	mm (Millimeters)	15.0
Single-Side Air Gap	CL	mm (Millimeters)	0.5
Thermal Resistance	θth	°C/W	15.0
Winding Temperature	Tmax	°C (Celsius)	155
Coil Weight	WTc	g (Grams)	35
Magnet Weight	WTf	g (Grams)	455
Motor Weight	Wta	g (Grams)	490
Total Length	L	mm (Millimeters)	60
Total Width	W	mm (Millimeters)	70
Total Height	H	mm (Millimeters)	29

I want to customize：TMEP0041-015-00A
