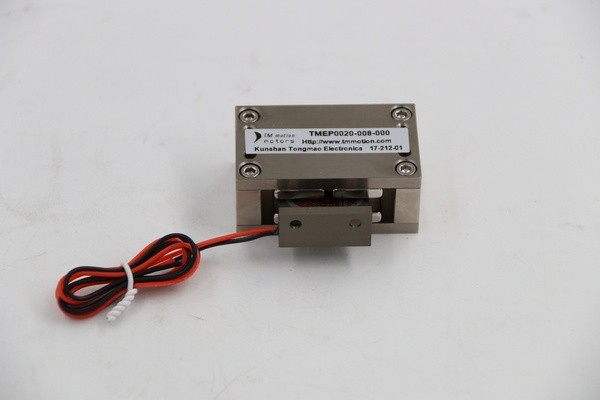

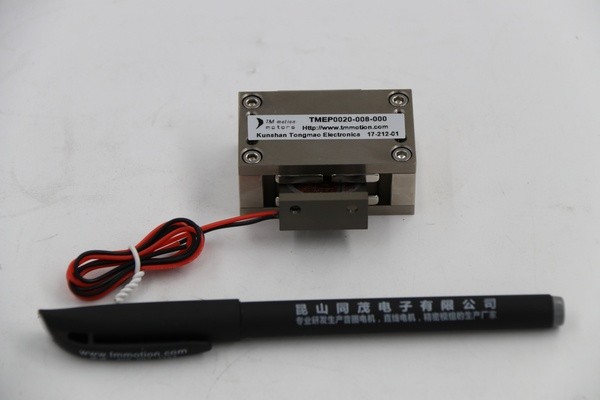

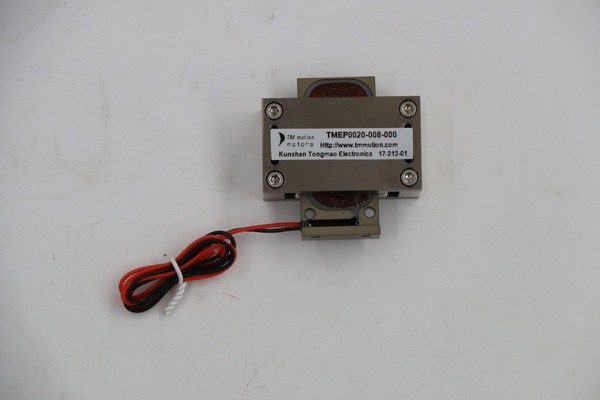

TMEP0020-008-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEP0020-008-000 (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	2.6
Peak Voltage	Vp	VOLTS (V)	13.0
Peak Current	Ip	AMPS (A)	5.0
Force Constant	Kf	N/A	4.0
Back EMF	Kb	V/M/Sec	4.0
Inductance	L	mH	0.5
Peak Force	Fp	N	20
Continuous Thrust	Fc	N	5.5
Motor Constant	Ka	N/√W	2.5
Time Constant	Te	milli-sec (ms)	0.2
Peak Power	Pp	W (Watts)	65
Peak Displacement	S	mm (Millimeters)	8.0
Single-Side Air Gap	CL	mm (Millimeters)	0.4
Thermal Resistance	θth	°C/W	25
Winding Temperature	Tmax	°C (Celsius)	150
Coil Weight	WTc	g (Grams)	24
Magnet Weight	WTf	g (Grams)	125
Motor Weight	Wta	g (Grams)	149
Total Length	L	mm (Millimeters)	39
Total Width	W	mm (Millimeters)	50
Total Height	H	mm (Millimeters)	21.5
