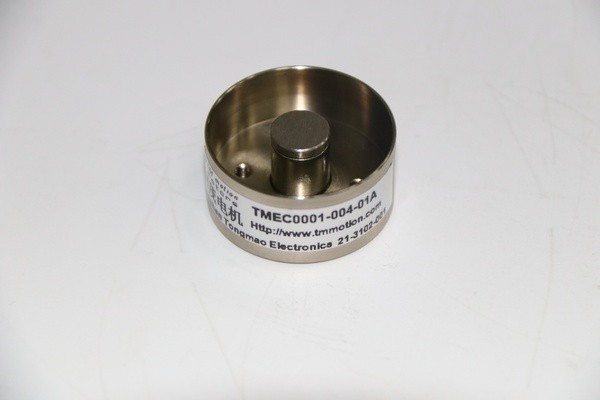

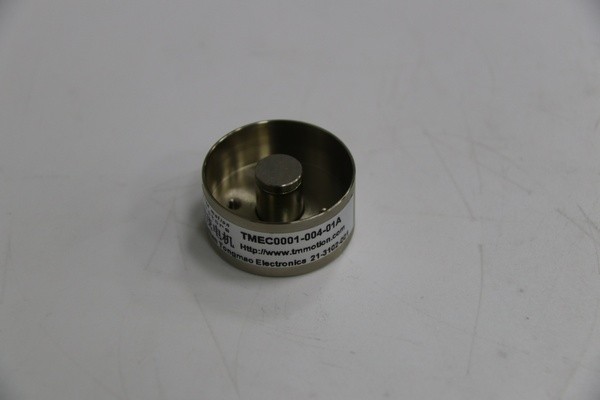

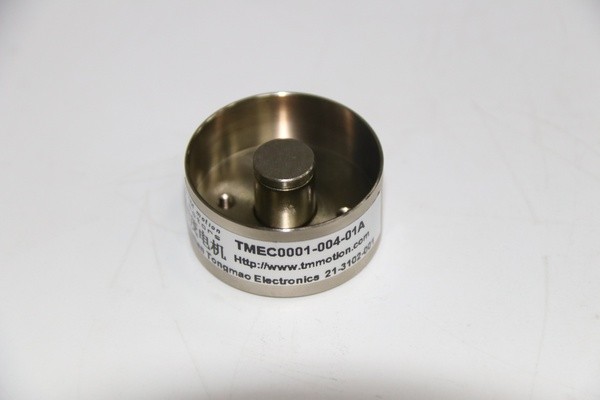

TMEC0001-004-01A|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0001-004-01A Voice Coil Motor
DC Resistance	R	OHMS(Ω)	0.54
Peak Voltage	Vp	VOLTS(V)	1.35
Peak Current	Ip	AMPS(A)	2.5
Force Constant	Kf	N/A	0.22
Back EMF Constant	Kb	VOLTS PER METER PER SECOND(V/(m·s))	0.22
Inductance	L	MILLIHENRY(mH)	0.04
Peak Force	Fp	NEWTON(N)	0.55
Continuous Thrust	Fc	NEWTON(N)	0.23
Motor Constant	Ka	NEWTON PER SQUARE ROOT OF WATT(N/√W)	0.3
Electrical Time Constant	Te	MILLISECOND(ms)	0.07
Peak Power	Pp	WATT(W)	3.4
Peak Displacement	S	MILLIMETER(mm)	4.0
Single-sided Air Gap	CL	MILLIMETER(mm)	4.5
Thermal Resistance	θth	DEGREE CELSIUS PER WATT(°C/W)	62.0
Maximum Winding Temperature	Tmax	DEGREE CELSIUS(°C)	155.0
Coil Weight	WTc	GRAM(g)	8.0
Magnet Weight	WTf	GRAM(g)	41.0
Total Motor Weight	Wta	GRAM(g)	49.0
Overall Motor Length	L	MILLIMETER(mm)	28.9
Outer Diameter	ФD	MILLIMETER(mm)	32.0
