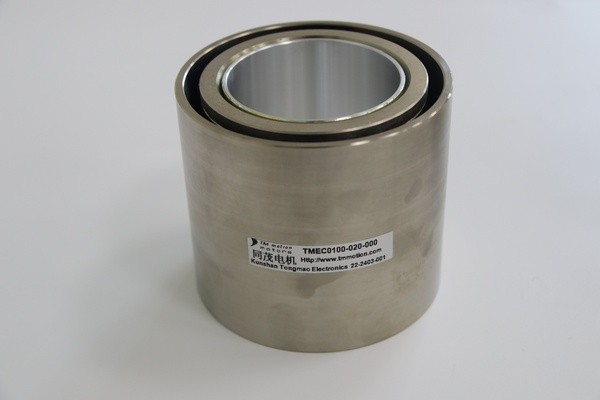

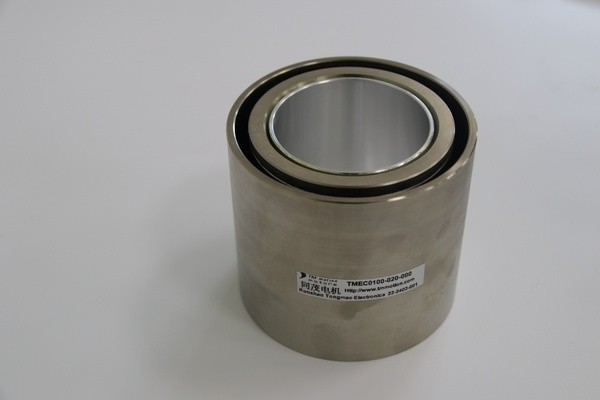

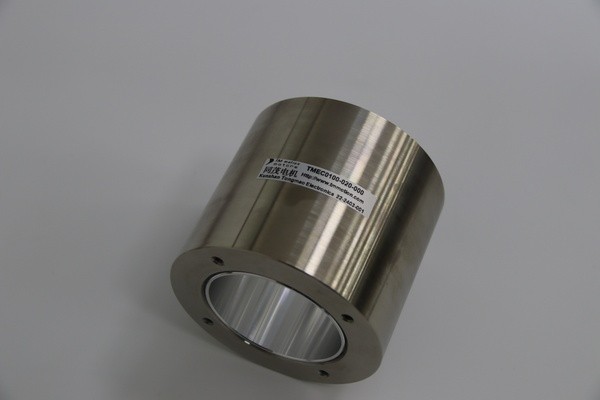

TMEC0100-020-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
DC Resistance	R	OHMS(Ω)	20.9
Peak Voltage	Vp	VOLTS(V)	60.3
Peak Current	Ip	AMPS(A)	2.8
Force Constant	Kf	N/A	34.5
Back EMF Constant	Kb	V/M/Sec	34.5
Inductance	L	mH	4.5
Peak Force	Fp	N	100.0
Continuous Thrust	Fc	N	36.9
Motor Constant	Ka	N/√W	7.5
Electrical Time Constant	Te	ms	0.22
Peak Power	Pp	W	175.5
Peak Displacement	S	mm	20.0
Single-side Air Gap	CL	mm	1.0
Thermal Resistance	θth	C/W(℃/W)	2.5
Maximum Winding Temperature	Tmax	C(℃)	120.0
Coil Weight	WTc	g	225.0
Magnet Weight	WTf	g	1300.0
Total Motor Weight	Wta	g	1525.0
Overall Motor Length	L	mm	105.5
Outer Diameter	ΦD	mm	85.0
Center Hole Diameter	Φd	mm	53.0
