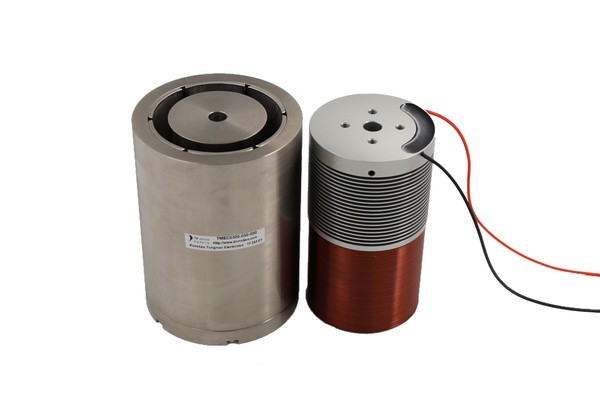

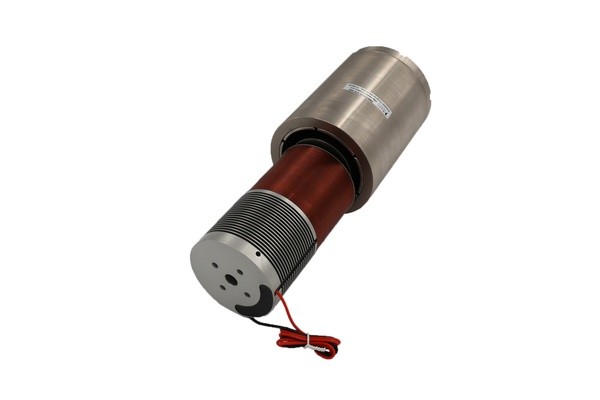

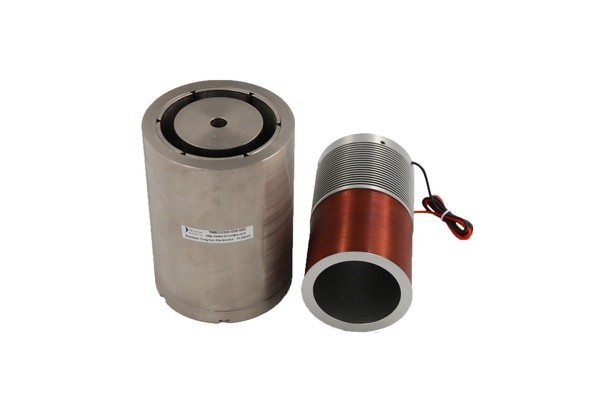

TMEC0300-050-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0300-050-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	9.5
Peak Voltage	Vp	VOLTS(V)	116.0
Peak Current	Ip	AMPS(A)	12.2
Force Constant	Kf	N/A	24.5
Back EMF Constant	Kb	V/(m·s)	24.5
Inductance	L	mH	20.0
Peak Force	Fp	N	300.0
Continuous Thrust	Fc	N	56.0
Motor Constant	Ka	N/√W	8.0
Electrical Time Constant	Te	ms	2.1
Peak Power	Pp	W	1415.0
Peak Displacement	S	mm	50.0
Single-side Air Gap	CL	mm	0.4
Thermal Resistance	θth	C/W(℃/W)	2.5
Maximum Winding Temperature	Tmax	C(℃)	150.0
Coil Weight	WTc	g	700.0
Magnet Weight	WTf	g	5150.0
Total Motor Weight	Wta	g	5850.0
Total Motor Length	L	mm	186.9
Outer Diameter	ФD	mm	93.0
Center Hole Diameter	Фd	mm	10.0

I want to customize：TMEC0300-050-000
