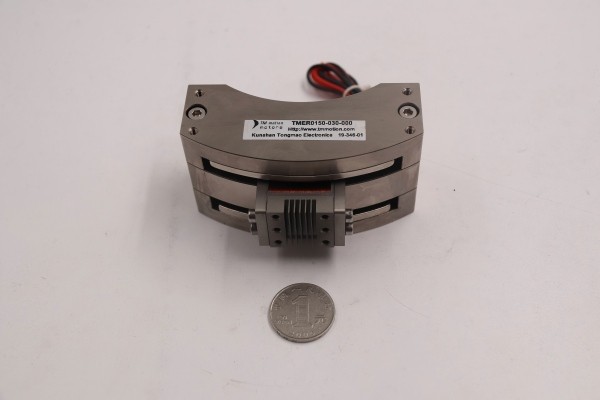

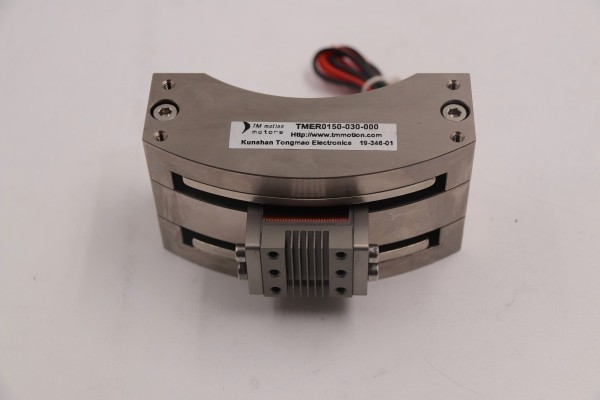

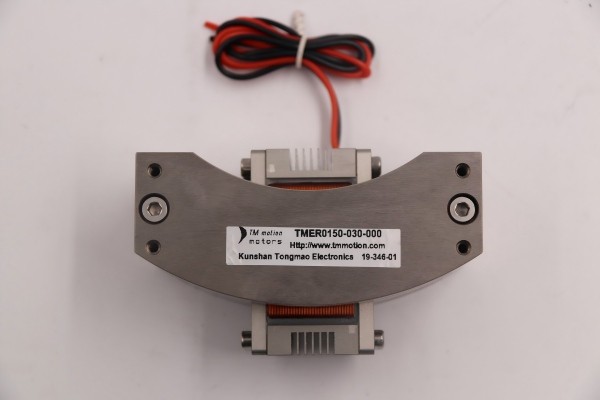

TMER0150-030-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

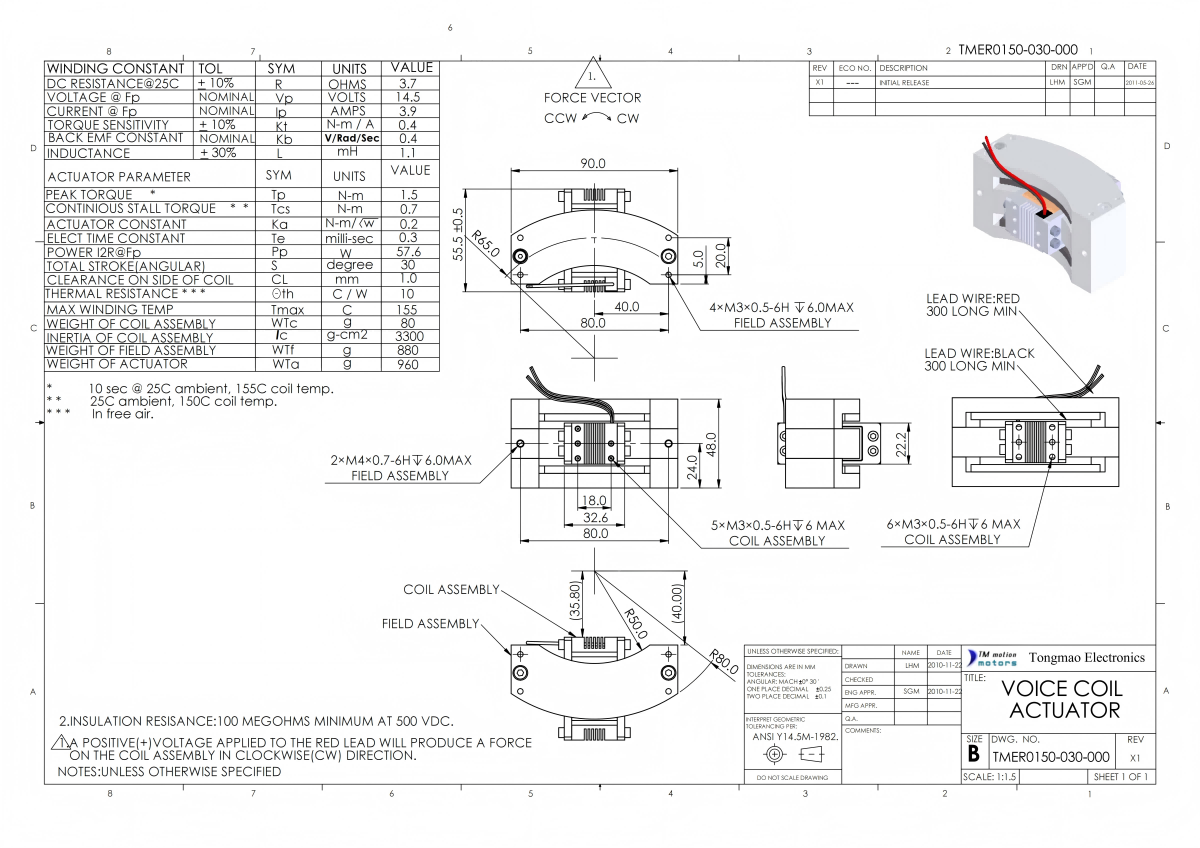

Parameter	Symbol	Unit	Value
Product Name	-	-	TMER0150-030-000 (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	3.7
Peak Voltage	Vp	VOLTS (V)	14.5
Peak Current	Ip	AMPS (A)	3.9
Torque Constant	Kt	N-m / A	0.4
Back EMF	Kb	V/Rad/Sec	0.4
Inductance	L	mH	1.1
Peak Torque	Fp	N-m	1.5
Continuous Torque	Tcs	N-m	0.7
Motor Constant	Ka	N-m/√W	0.2
Time Constant	Te	milli-sec (ms)	0.3
Peak Power	Pp	W (Watts)	57.6
Rotation Angle	S	degree (°)	30
Single-Side Air Gap	CL	mm (Millimeters)	1.0
Thermal Resistance	θth	°C/W	10
Winding Temperature	Tmax	°C (Celsius)	155
Coil Weight	WTc	g (Grams)	80
Moment of Inertia	Ic	g-cm²	3300
Magnet Weight	WTf	g (Grams)	880
Motor Weight	Wta	g (Grams)	960
Total Length	L	mm (Millimeters)	90
Total Width	W	mm (Millimeters)	55.5
Total Height	H	mm (Millimeters)	48

I want to customize：TMER0150-030-000
