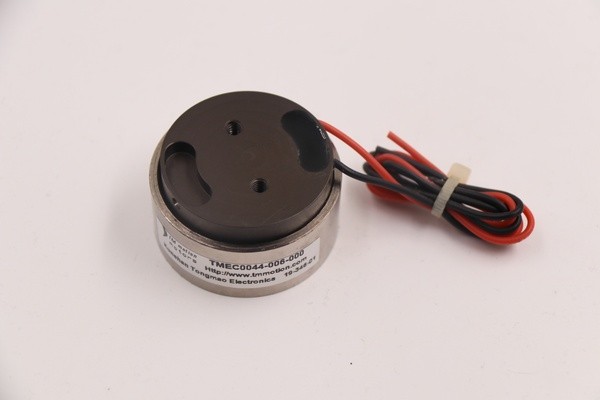

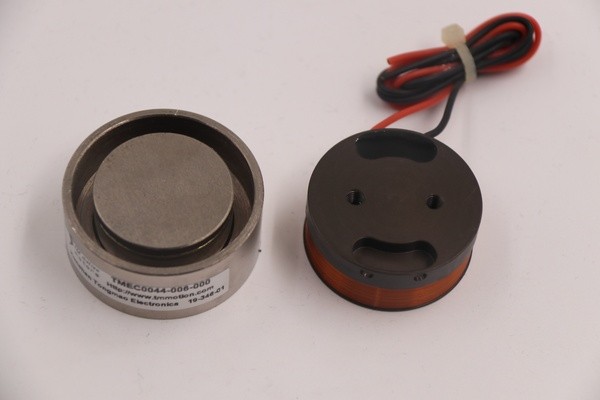

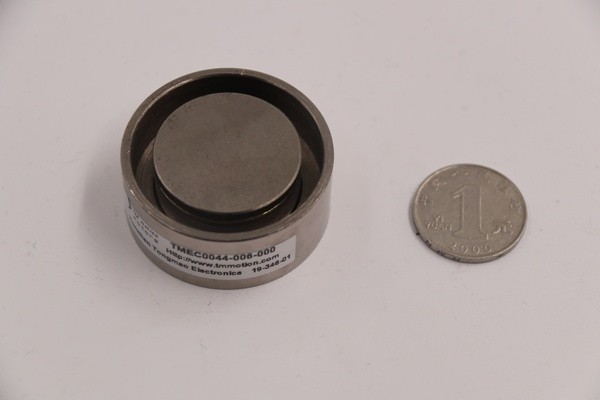

TMEC0044-006-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name			TMEC0044-006-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	3.7
Peak Voltage	Vp	VOLTS(V)	19.2
Peak Current	Ip	AMPS(A)	5.2
Force Constant	Kf	N/A	8.5
Back EMF Constant	Kb	VOLTS/METER/SECOND(V/(m/s))	8.5
Inductance	L	MILLIHENRY(mH)	1.0
Peak Force	Fp	NEWTON(N)	44.0
Continuous Thrust	Fc	NEWTON(N)	12.6
Motor Constant	Ka	NEWTON PER SQUARE ROOT WATT(N/√W)	4.4
Electrical Time Constant	Te	MILLISECOND(ms)	0.27
Peak Power	Pp	WATT(W)	100.0
Peak Displacement	S	MILLIMETER(mm)	6.0
Single-sided Air Gap	CL	MILLIMETER(mm)	0.4
Thermal Resistance	θth	DEGREE CELSIUS PER WATT(°C/W)	15.4
Maximum Winding Temperature	Tmax	DEGREE CELSIUS(°C)	155.0
Coil Weight	WTc	GRAM(g)	43.0
Magnet Weight	WTf	GRAM(g)	180.0
Total Motor Weight	Wta	GRAM(g)	223.0
Total Motor Length	L	MILLIMETER(mm)	31.4
Outer Diameter	ФD	MILLIMETER(mm)	44.5
