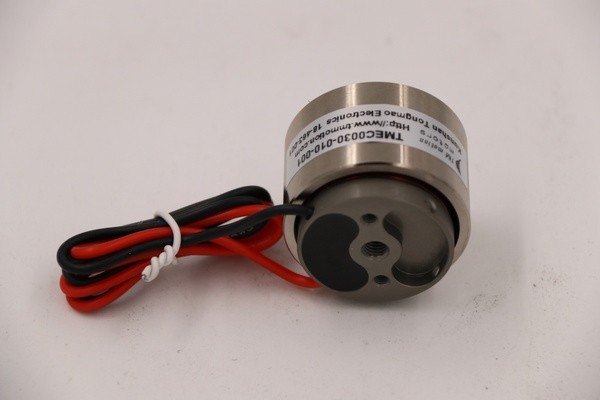

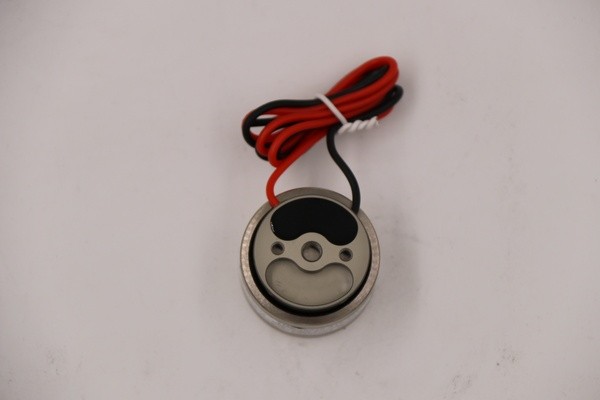

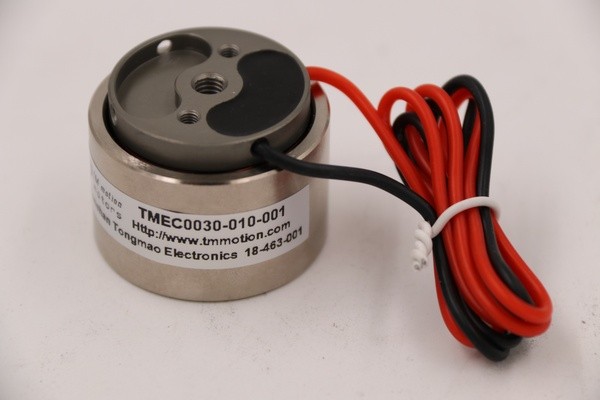

TMEC0030-010-001|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0030-010-001 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	0.52
Peak Voltage	Vp	VOLTS(V)	7.6
Peak Current	Ip	AMPS(A)	14.6
Force Constant	Kf	N/A	2.02
Back EMF Constant	Kb	VOLTS PER METER PER SECOND(V/m/s)	2.02
Inductance	L	MILLIHENRY(mH)	0.16
Peak Force	Fp	NEWTON(N)	29.5
Continuous Thrust	Fc	NEWTON(N)	7.9
Motor Constant	Ka	NEWTON PER SQUARE ROOT WATT(N/√W)	2.8
Electrical Time Constant	Te	MILLISECOND(ms)	0.31
Peak Power	Pp	WATT(W)	110.9
Peak Displacement	S	MILLIMETER(mm)	10.0
Single-sided Air Gap	CL	MILLIMETER(mm)	0.5
Thermal Resistance	θth	DEGREE CELSIUS PER WATT(°C/W)	15.5
Maximum Winding Temperature	Tmax	DEGREE CELSIUS(°C)	150.0
Coil Weight	WTc	GRAM(g)	27.0
Magnet Weight	WTf	GRAM(g)	125.0
Total Motor Weight	Wta	GRAM(g)	152.0
Total Motor Length	L	MILLIMETER(mm)	36.7
Outer Diameter	ФD	MILLIMETER(mm)	35.0
