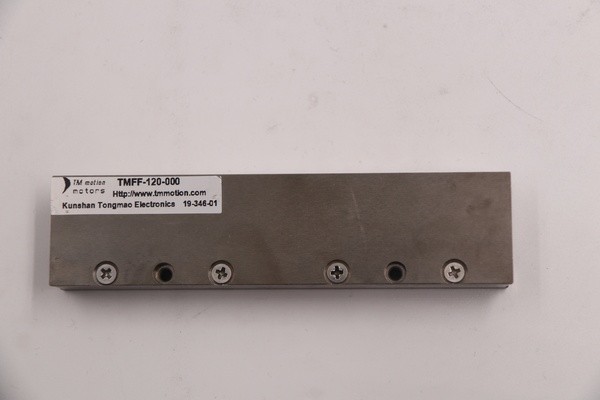

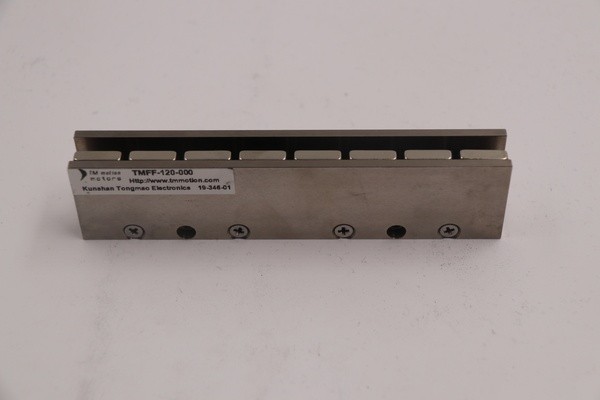

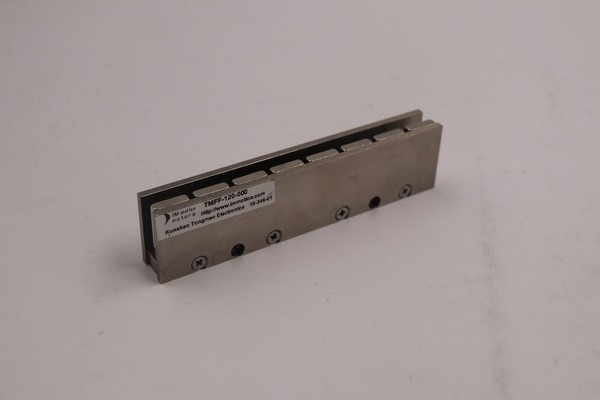

TMCF0015-140-000|TM

Linear motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name			TMCF0015-140-000
Motor Type			U-type Linear Motor
Withstand Voltage			AC1500V 1min
Insulation Resistance			≥100MΩ @ DC500V
Operating Ambient Temperature			0~40°C
Operating Ambient Humidity			20%~80%RH
Cooling Method			Natural Cooling
Peak Coil Temperature			120°C (Class E)
Resistance @25°C P-P	R	OHMS(Ω)	11.1
Peak Current	Ip	Arms	2.6
Continuous Current	Ic	Arms	1.3
Force Constant	Kf	N/Arms	11.6
Back EMF Constant	Kb	Vrms/(m/s)	6.9
Inductance P-P	L	mH	2.6
Peak Force	Fp	N	30.2
Continuous Thrust	Fc	N	15.2
Motor Constant	Ka	N/√W	2.9
Electrical Time Constant	Te	ms	0.23
Peak Power	Pp	W	107.7
Continuous Power	Pc	W	27.1
Thermal Resistance	θth	°C/W	3.5
Maximum Winding Temperature	Tmax	°C	120.0
Coil Weight	WTc	g	125.0
Magnet Weight	WTf	g	235.0
Overall Length	L	mm	180.0
