| Parameter | Symbol | Unit | Value |
|---|---|---|---|

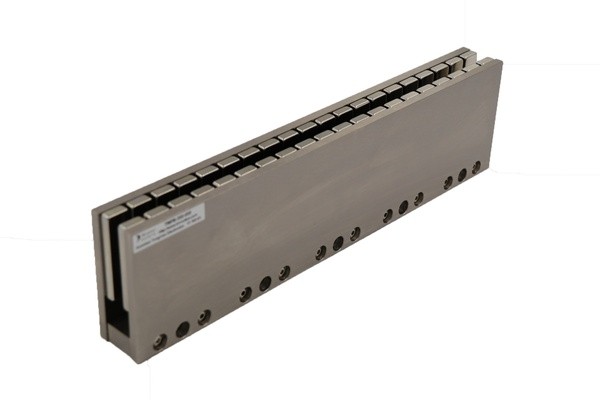

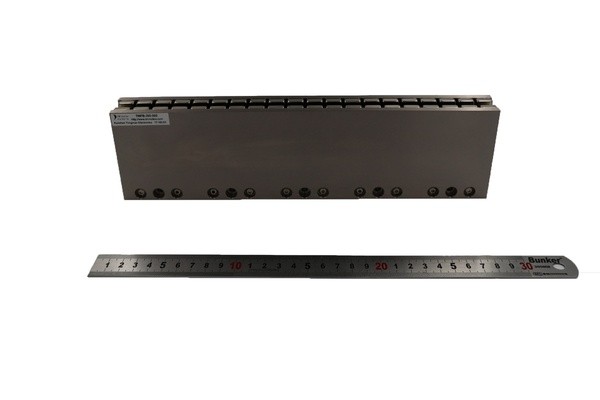

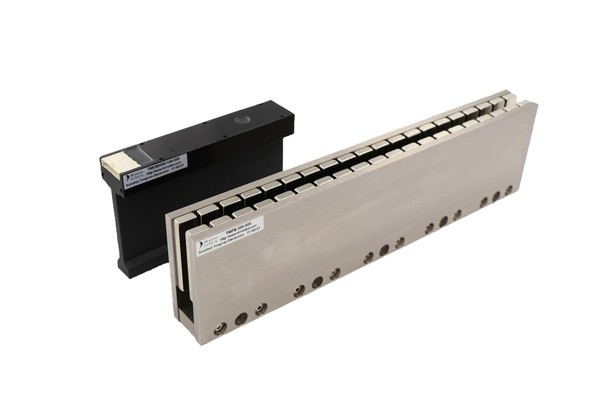

| Product Name (Mover) | - | - | TMCB0080-140-000 U-shaped Linear Motor |
| Withstand Voltage | - | VAC(Volt AC) | AC1500V, 1min |
| Insulation Resistance | - | MΩ(Megaohm) | ≥100MΩ @ DC500V |
| Ambient Temperature | - | °C(Degree Celsius) | 0~40 |
| Ambient Humidity | - | %(Percent) | 20~80 |
| Cooling Method | - | - | Natural Cooling |
| Peak Coil Temperature | - | °C(Degree Celsius) | 120 (Class E) |
| Resistance @25℃ P-P | R | OHMS(Ω) | 11.5 |
| Peak Current | Ip | Arms(Ampere RMS) | 5.5 |
| Continuous Current | Ic | Arms(Ampere RMS) | 1.7 |
| Force Constant | Kf | N/Arms(Newton per Ampere RMS) | 51.1 |
| Back EMF Constant | Kb | Vrms/(m/s)(Volt RMS per Meter per Second) | 29.1 |
| Inductance P-P | L | mH(Millihenry) | 3.6 |
| Peak Force | Fp | N(Newton) | 280.0 |
| Continuous Thrust | Fc | N(Newton) | 80.0 |
| Motor Constant | Ka | N/√W(Newton per Square Root Watt) | 12.1 |
| Time Constant | Te | ms(Millisecond) | 0.3 |
| Peak Power | Pp | W(Watt) | 520.0 |
| Continuous Power | Pc | W(Watt) | 42.0 |
| Thermal Resistance | θth | °C/W(Degree Celsius per Watt) | 1.5 |
| Winding Maximum Temperature | Tmax | °C(Degree Celsius) | 120.0 |
| Coil Weight | WTc | g(Gram) | 490.0 |
| Total Length | L | mm(Millimeter) | 135.0 |
| Compatible Stator Model | - | - | TMFB-180-000, TMFB-300-000 |
| Stator Parameter (Model: TMFB-180-000, U-shaped Linear Motor B Series) | |||
| Standard Length | L | mm(Millimeter) | 180.0 |
| Standard Width | W | mm(Millimeter) | 78.0 |
| Standard Thickness | T | mm(Millimeter) | 31.7 |
| Magnetic Track Weight | Wta | kg/m(Kilogram per Meter) | 13.1 |
| Stator Parameter (Model: TMFB-300-000, U-shaped Linear Motor B Series) | |||
| Standard Length | L | mm(Millimeter) | 300.0 |
| Standard Width | W | mm(Millimeter) | 78.0 |
| Standard Thickness | T | mm(Millimeter) | 31.7 |
| Magnetic Track Weight | Wta | kg/m(Kilogram per Meter) | 13.1 |
| Optional Accessories | - | - | TMHA-01/03/05/09/15 |
