TMCA0050-140-000

The coreless AC brushless linear motors (linear motors, linear motors) we provide are applied in servo systems. We offer standard magnetic rails and can be made into platform systems, multi-axis systems, and can also be customized according to customer requirements.

Product details

Product Introduction

Product Name	TMCA0050-140-000		U-shaped linear motor
Insulation withstand voltage	AC1500 1min	Insulation resistance	DC500V, over 100M
Ambient temperature	0-40 degrees	Environmental humidity	20% - 80%
Cooling method	Natural cooling	Coil peak temperature	120℃ (Class E
Motor parameters	Symbol	Unit	Numerical value
Resistance @25℃ P-P	R	OHMS	9.2
Peak current	Ip	Arms	5.7
Continuous current	Ic	Arms	1.7
Constant force value	Kf	N/Arms	31
Counter electromotive force	Kb	Vrms/M/S	17.7
Inductance P-P	L	mH	3
Peak force	Fp	N	175
Continuous thrust	Fc	N	50
Motor constant	Ka	N/√w	8.2
Time constant	Te	ms	0.3
Peak power	Pp	W	450
Peak displacement	Pc	W	37
Thermal resistance	θth	C/W	1.6
Winding temperature	Tmax	C	120
Coil weight	WTc	g	400
Chief Executive	L	mm	135

I want to customize：TMCA0050-140-000

*Contact person：
Company name：
*Email：
Purchase intention：
*Verification code：

Ironless linear motor

Location：Home > Linear motor > Ironless linear motor

Voice coil motor

Voice coil module

Linear motor

Linear motor module

Torque motor

TMCA0050-140-000

I want to customize：TMCA0050-140-000

Related Products

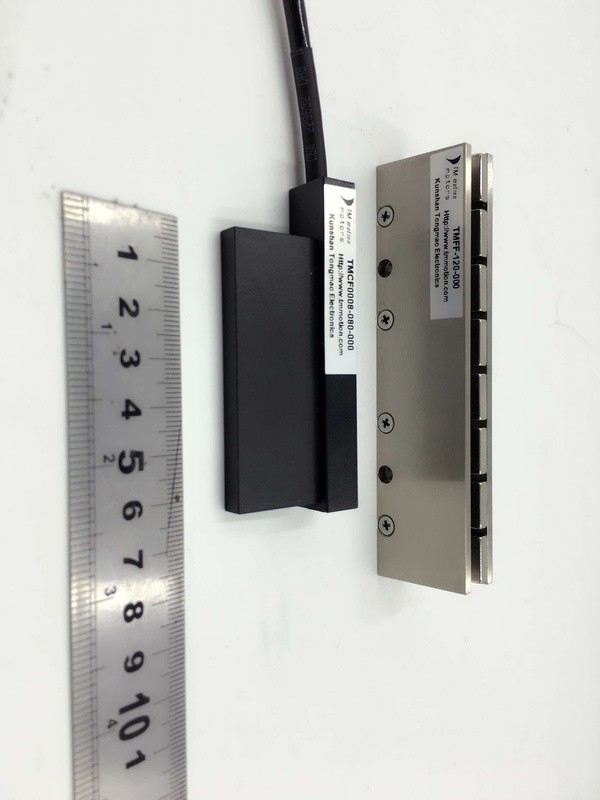

TMCF0008-080-000
