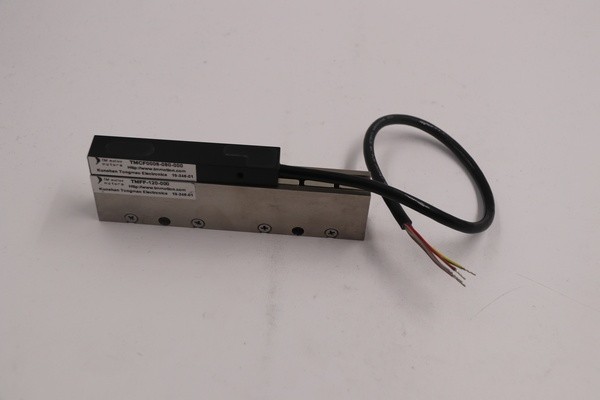

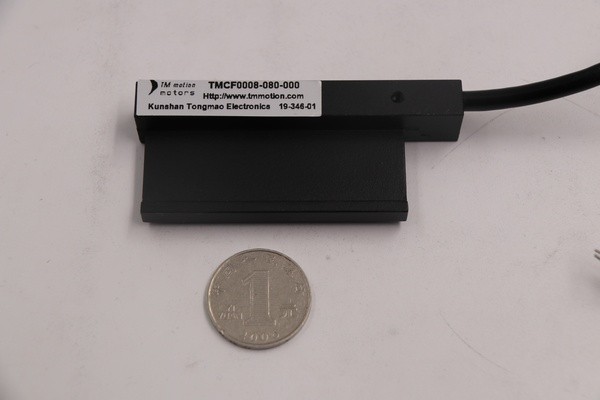

TMCF0008-080-000|TM

Linear motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMCF0008-080-000 U-type Linear Motor
Withstand Voltage	-	-	AC1500V for 1min
Insulation Resistance	-	-	≥100MΩ @ DC500V
Ambient Temperature	-	Degree Celsius(℃)	0-40
Ambient Humidity	-	%RH	20-80
Cooling Method	-	-	Natural Cooling
Peak Coil Temperature (Class E)	-	Degree Celsius(℃)	120
Resistance @25℃ P-P	R	Ohms(Ω)	5.5
Peak Current	Ip	Ampere RMS(A)	2.7
Continuous Current	Ic	Ampere RMS(A)	1.4
Force Constant	Kf	Newton per Ampere RMS(N/A)	5.8
Back EMF Constant	Kb	Volt RMS per Meter per Second(V/(m·s))	3.5
Inductance P-P	L	Millihenry(mH)	1.3
Peak Force	Fp	Newton(N)	16.0
Continuous Thrust	Fc	Newton(N)	8.1
Motor Constant	Ka	Newton per Square Root Watt(N/√W)	1.9
Electrical Time Constant	Te	Millisecond(ms)	0.25
Peak Power	Pp	Watt(W)	62.4
Continuous Power	Pc	Watt(W)	15.6
Thermal Resistance	θth	Degree Celsius per Watt(℃/W)	5.0
Maximum Winding Temperature	Tmax	Degree Celsius(℃)	120.0
Coil Weight	WTc	Gram(g)	66.0
Magnet Weight	WTf	Gram(g)	235.0
Overall Length	L	Millimeter(mm)	120.0
