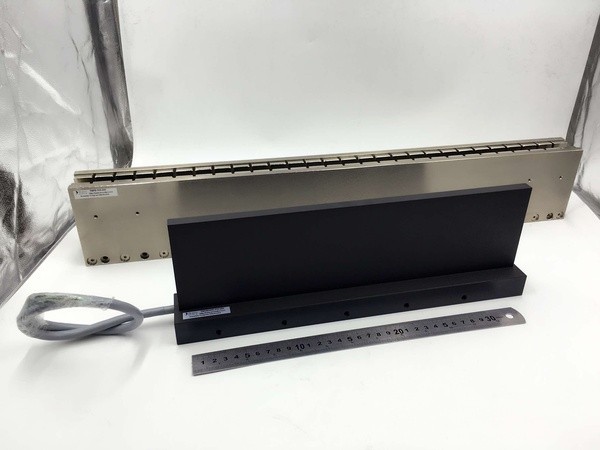

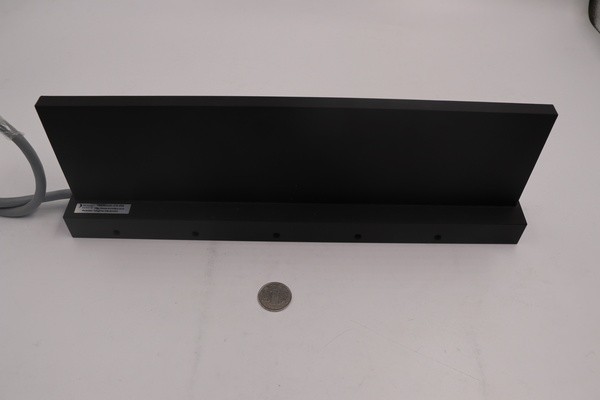

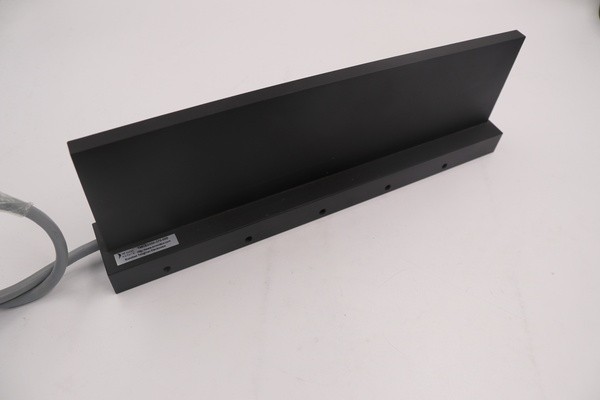

TMCE0550-370-000|TM

Linear motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMCE0550-370-000 U-shaped Linear Motor
Insulation Withstand Voltage	-	-	AC1500V 1min
Insulation Resistance	-	-	≥100MΩ @ DC500V
Ambient Temperature	-	℃	0~40
Ambient Humidity	-	%RH	20~80
Cooling Method	-	-	Natural Cooling
Peak Coil Temperature	-	℃	120 (Class E)
Resistance @25℃ P-P	R	OHMS(Ω)	3.6
Peak Current	Ip	Arms	22.0
Continuous Current	Ic	Arms	6.5
Force Constant	Kf	N/Arms	86.0
Back EMF Constant	Kb	Vrms/(m/s)	50.0
Inductance P-P	L	mH	9.0
Peak Force	Fp	N	1900.0
Continuous Thrust	Fc	N	550.0
Motor Constant	Ka	N/√W	37.5
Electrical Time Constant	Te	ms	2.5
Peak Power	Pp	W	2700.0
Peak Displacement	Pc	mm	220.0
Thermal Resistance	θth	℃/W	0.36
Maximum Winding Temperature	Tmax	℃	120.0
Coil Weight	WTc	g	3800.0
Total Length	L	mm	370.0
Compatible Stator Models	-	-	TMFE-250-000, TMFE-500-000
Stator Product Name	-	-	U-shaped Linear Motor E Series
Stator Model	-	-	TMFE-250-000
Standard Length (Stator)	L	mm	252.0
Standard Width (Stator)	W	mm	110.0
Standard Thickness (Stator)	T	mm	50.0
Magnet Track Weight	Wta	Kg/m	29.2
Stator Product Name	-	-	U-shaped Linear Motor E Series
Stator Model	-	-	TMFE-500-000
Standard Length (Stator)	L	mm	504.0
Standard Width (Stator)	W	mm	110.0
Standard Thickness (Stator)	T	mm	50.0
Magnet Track Weight	Wta	Kg/m	29.2

I want to customize：TMCE0550-370-000
