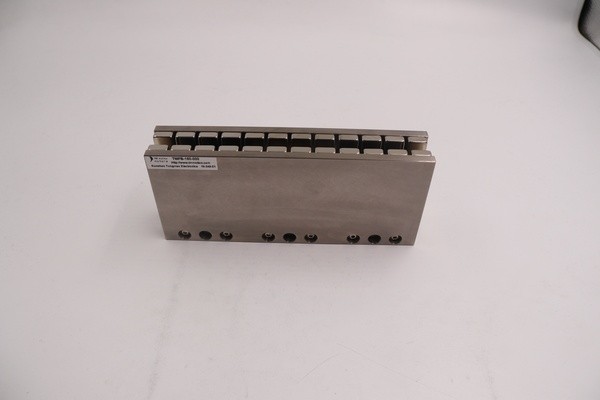

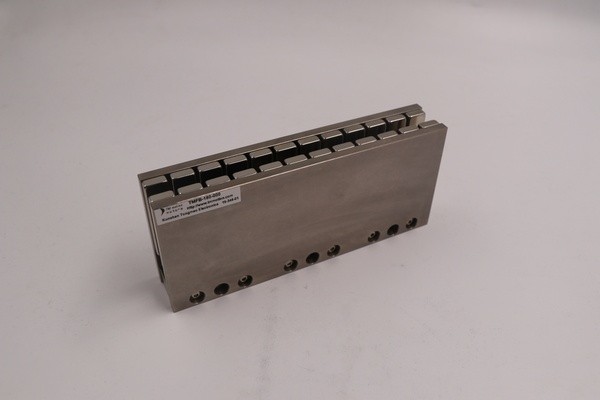

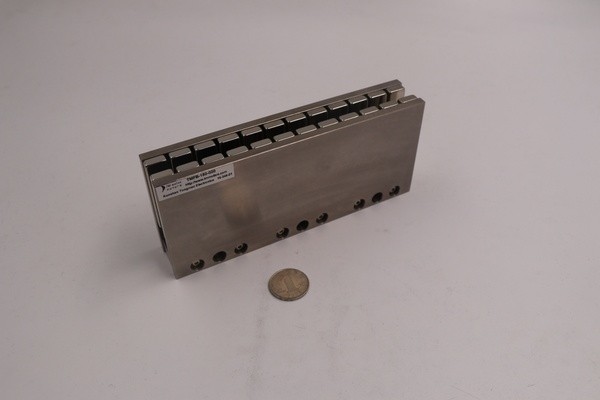

TMCB0150-260-000|TM

Linear motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name (Mover)	-	-	TMCB0150-260-000 U-shaped Linear Motor Mover
Dielectric Withstand Voltage	-	-	AC1500V, 1min
Insulation Resistance	-	-	≥100MΩ @ DC500V
Ambient Operating Temperature	-	C(℃)	0~40
Ambient Operating Humidity	-	%RH	20~80
Cooling Method	-	-	Natural Cooling
Peak Coil Temperature	-	C(℃)	120 (Class E)
Resistance @25℃ P-P	R	OHMS(Ω)	22.9
Peak Current	Ip	Arms	5.3
Continuous Current	Ic	Arms	1.5
Force Constant	Kf	N/Arms	99.0
Back EMF Constant	Kb	Vrms/(m/s)	57.2
Inductance P-P	L	mH	7.2
Peak Force	Fp	N	525.0
Continuous Thrust	Fc	N	150.0
Motor Constant	Ka	N/√W	16.9
Electrical Time Constant	Te	ms	0.3
Peak Power	Pp	W	970.0
Peak Displacement	Pc	W	80.0
Thermal Resistance	θth	C(℃)/W	1.0
Maximum Winding Temperature	Tmax	C(℃)	120.0
Coil Weight	WTc	g	930.0
Total Length	L	mm	255.0
Compatible Stator Model 1	-	-	TMFB-180-000
Product Name (Stator TMFB-180-000)	-	-	U-shaped Linear Motor B Series
Standard Length (Stator TMFB-180-000)	L	mm	180.0
Standard Width (Stator TMFB-180-000)	W	mm	78.0
Standard Thickness (Stator TMFB-180-000)	T	mm	31.7
Magnet Rail Weight (Stator TMFB-180-000)	Wta	Kg/m	13.1
Compatible Stator Model 2	-	-	TMFB-300-000
Product Name (Stator TMFB-300-000)	-	-	U-shaped Linear Motor B Series
Standard Length (Stator TMFB-300-000)	L	mm	300.0
Standard Width (Stator TMFB-300-000)	W	mm	78.0
Standard Thickness (Stator TMFB-300-000)	T	mm	31.7
Magnet Rail Weight (Stator TMFB-300-000)	Wta	Kg/m	13.1
Optional Accessories	-	-	TMHA-01/03/05/09/15

I want to customize：TMCB0150-260-000
