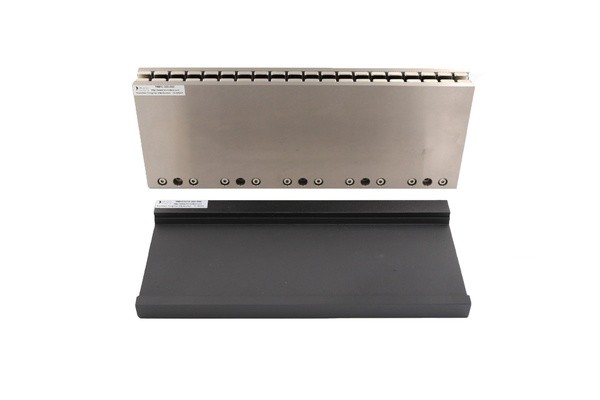

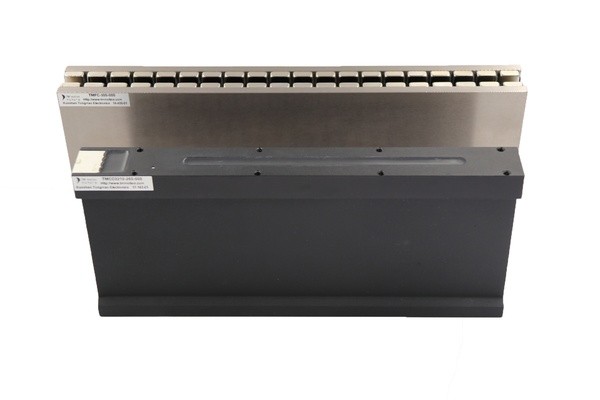

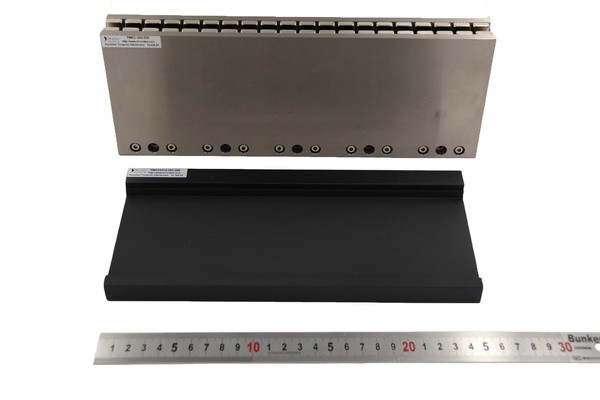

TMCC0210-260-000|TM

Linear motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
TMCC0210-260-000 U-type Linear Motor Mover Parameters
Insulation Withstand Voltage	-	-	AC1500V 1min
Insulation Resistance	-	MΩ	≥100 @ DC500V
Ambient Temperature	-	C(℃)	0-40
Ambient Humidity	-	%RH	20-80
Cooling Method	-	-	Natural Cooling
Coil Peak Temperature (Class E)	-	C(℃)	120
Resistance @25℃ P-P	R	OHMS(Ω)	8.0
Peak Current	Ip	Arms	9.2
Continuous Current	Ic	Arms	2.6
Force Constant	Kf	N/Arms	80.6
Back EMF Constant	Kb	Vrms/(m·s)	46.5
Inductance P-P	L	mH	2.8
Peak Force	Fp	N	735.0
Continuous Thrust	Fc	N	210.0
Motor Constant	Ka	N/√W	23.3
Electrical Time Constant	Te	ms	0.35
Peak Power	Pp	W	1000.0
Peak Displacement	Pc	W	85.0
Thermal Resistance	θth	C(℃)/W	0.9
Winding Maximum Temperature	Tmax	C(℃)	120.0
Coil Weight	WTc	g	1250.0
Overall Length	L	mm	255.0
TMFC-180-000 U-type Linear Motor Stator Parameters
Standard Length	L	mm	180.0
Standard Width	W	mm	112.0
Standard Thickness	T	mm	34.0
Magnet Track Weight	Wta	Kg/m	21.2
TMFC-300-000 U-type Linear Motor Stator Parameters
Standard Length	L	mm	300.0
Standard Width	W	mm	112.0
Standard Thickness	T	mm	34.0
Magnet Track Weight	Wta	Kg/m	21.2
Optional Accessories	-	-	TMHA-01/03/05/09/15
