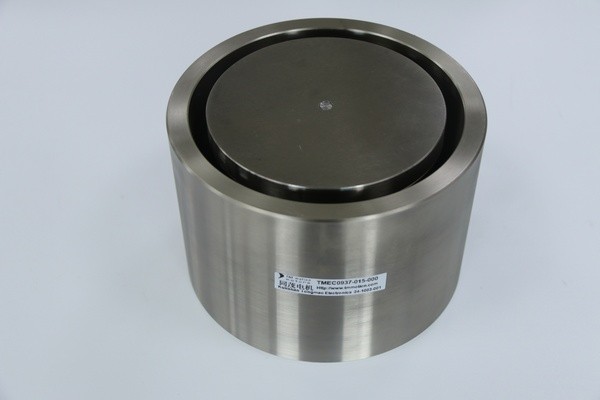

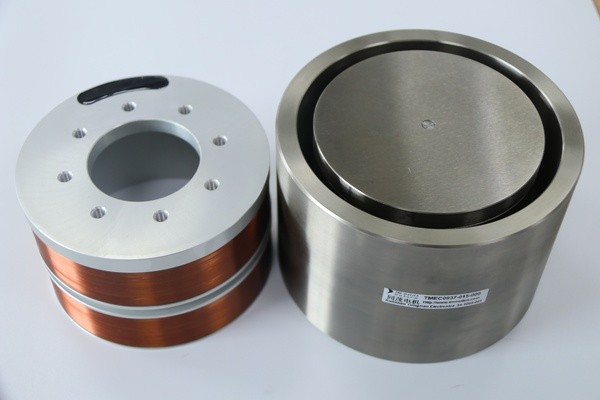

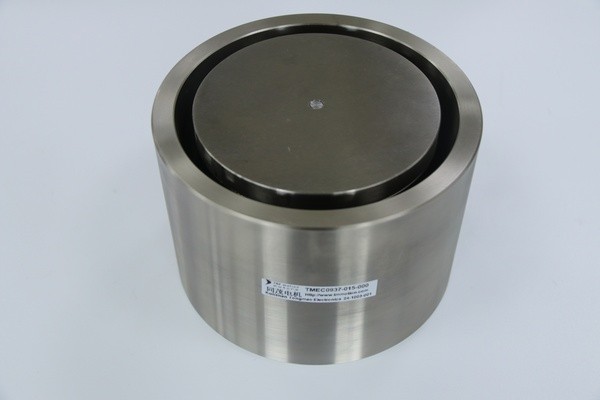

TMEC0937-015-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0937-015-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	19.9
Peak Voltage	Vp	VOLTS(V)	98.1
Peak Current	Ip	AMPS(A)	4.9
Force Constant	Kf	N/A	190.1
Back EMF Constant	Kb	V/M/Sec	190.1
Inductance	L	mH	14.4
Peak Force	Fp	N	937.0
Continuous Thrust	Fc	N	309.6
Motor Constant	Ka	N/√w	42.6
Electrical Time Constant	Te	ms	0.72
Peak Power	Pp	W	483.5
Peak Displacement	S	mm	15.0
Single-side Air Gap	CL	mm	1.0
Thermal Resistance	θth	C/W	1.8
Maximum Winding Temperature	Tmax	C	120.0
Coil Weight	WTc	g	660.0
Magnet Weight	WTf	g	8200.0
Total Motor Weight	Wta	g	8860.0
Total Motor Length	L	mm	114.5
Outer Diameter	ФD	mm	133.0

I want to customize：TMEC0937-015-000
