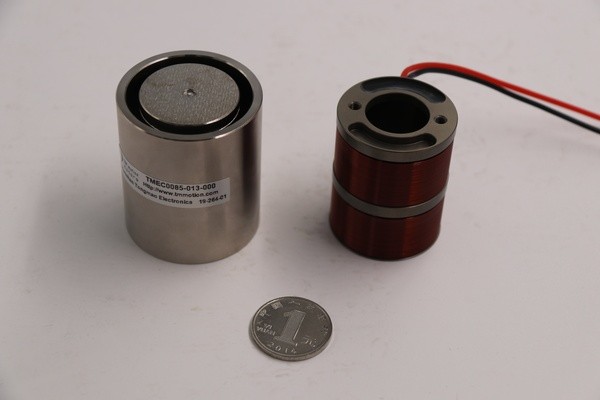

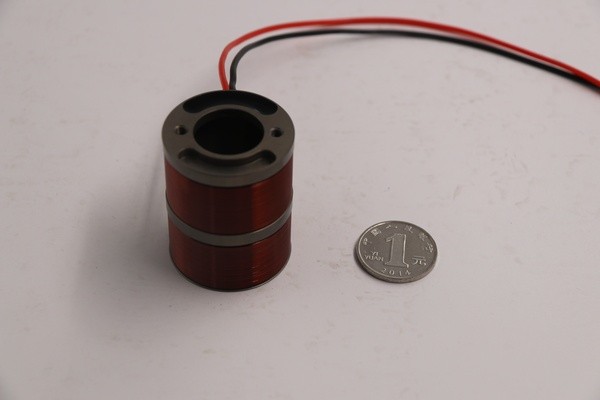

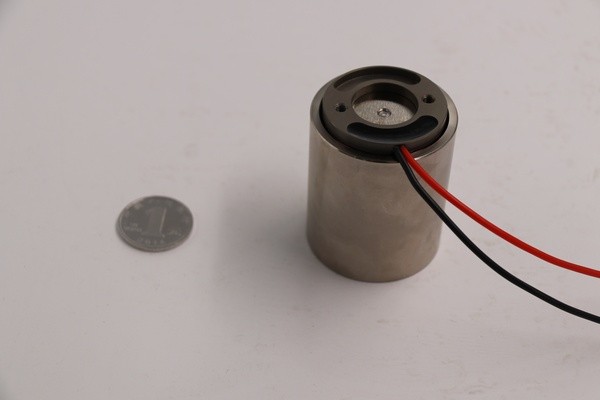

TMEC0085-013-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0085-013-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	1.8
Peak Voltage	Vp	VOLTS(V)	10.4
Peak Current	Ip	AMPS(A)	5.8
Force Constant	Kf	N/A	14.8
Back EMF Constant	Kb	V/M/Sec	14.8
Inductance	L	mH	0.67
Peak Force	Fp	N	85.6
Continuous Thrust	Fc	N	37.3
Motor Constant	Ka	N/√w	11.1
Electrical Time Constant	Te	ms	0.37
Peak Power	Pp	W	60.2
Peak Displacement	S	mm	13.0
Single-side Air Gap	CL	mm	0.4
Thermal Resistance	θth	C/W(℃/W)	8.3
Maximum Winding Temperature	Tmax	C(℃)	120.0
Coil Weight	WTc	g	80.0
Magnet Weight	WTf	g	483.0
Total Motor Weight	Wta	g	563.0
Total Motor Length	L	mm	70.6
Outer Diameter	ФD	mm	45.0

I want to customize：TMEC0085-013-000
