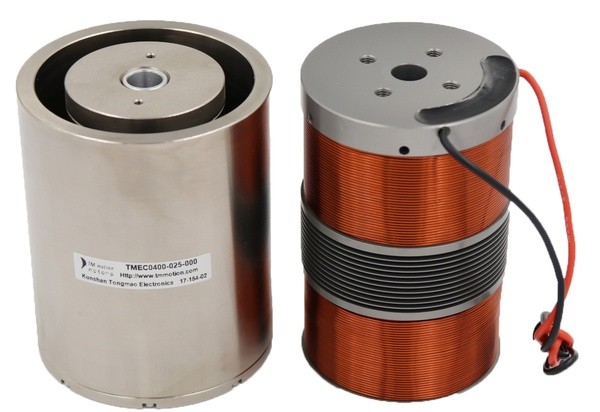

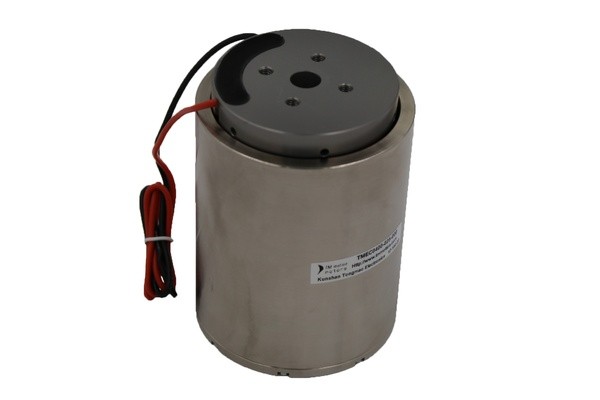

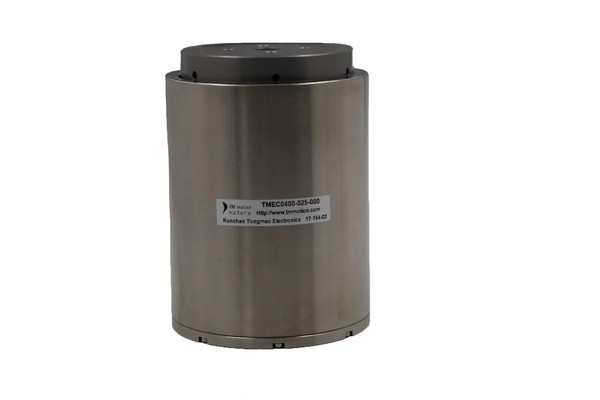

TMEC0400-025-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0400-025-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	2.7
Peak Voltage	Vp	VOLTS(V)	28.5
Peak Current	Ip	AMPS(A)	10.6
Force Constant	Kf	N/A	38.0
Back EMF Constant	Kb	V/M/Sec	38.0
Inductance	L	mH	5.0
Peak Force	Fp	N	400.0
Continuous Thrust	Fc	N	170.0
Motor Constant	Ka	N/√w	23.2
Electrical Time Constant	Te	ms	1.8
Peak Power	Pp	W	302.0
Peak Displacement	S	mm	25.0
Single-sided Air Gap	CL	mm	0.5
Thermal Resistance	θth	°C/W	2.3
Maximum Winding Temperature	Tmax	°C	150.0
Coil Weight	WTc	g	740.0
Magnet Weight	WTf	g	2470.0
Total Motor Weight	Wta	g	3210.0
Overall Motor Length	L	mm	135.0
Outer Diameter	ФD	mm	80.0
Center Hole Diameter	Фd	mm	11.0

I want to customize：TMEC0400-025-000
