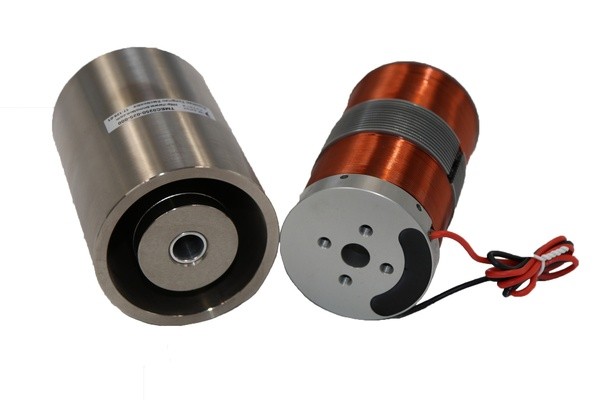

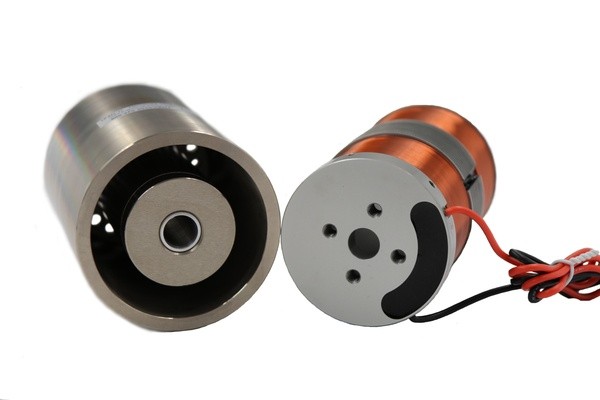

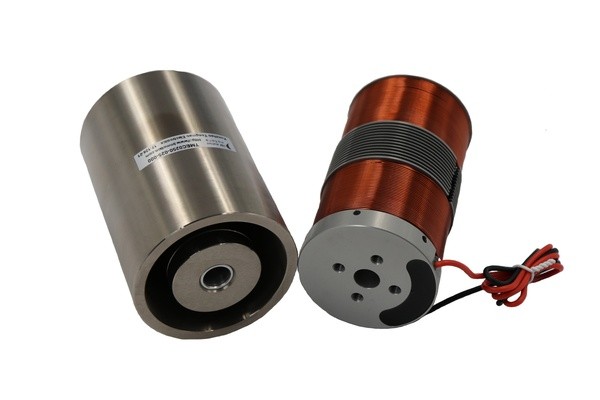

TMEC0250-025-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
DC Resistance	R	OHMS(Ω)	2.8
Peak Voltage	Vp	VOLTS(V)	29.0
Peak Current	Ip	AMPS(A)	10.3
Force Constant	Kf	N/A	26.2
Back EMF Constant	Kb	V/M/Sec(V/(m·s))	26.2
Inductance	L	mH	6.0
Peak Force	Fp	N	271.1
Continuous Thrust	Fc	N	115.0
Motor Constant	Ka	N/√W	15.6
Electrical Time Constant	Te	ms	2.1
Peak Power	Pp	W	299.8
Peak Displacement	S	mm	25.0
Single-side Air Gap	CL	mm	0.5
Thermal Resistance	θth	C/W(℃/W)	2.4
Maximum Winding Temperature	Tmax	C(℃)	150.0
Coil Weight	WTc	g	740.0
Magnet Weight	WTf	g	1610.0
Total Motor Weight	Wta	g	2350.0
Overall Motor Length	L	mm	135.0
Outer Diameter	ФD	mm	70.0
Center Hole Diameter	Фd	mm	11.0

I want to customize：TMEC0250-025-000
