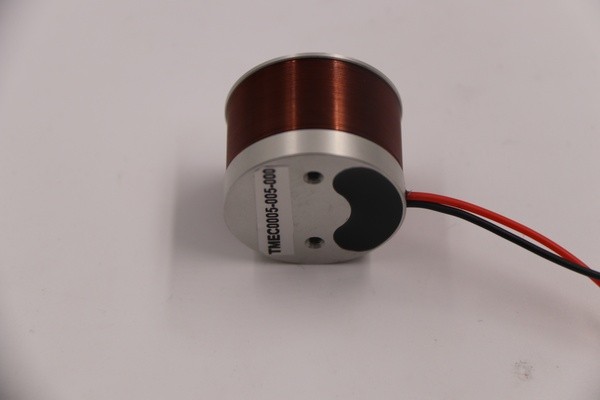

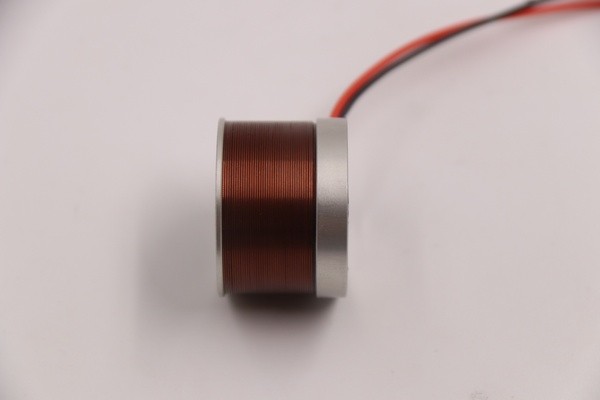

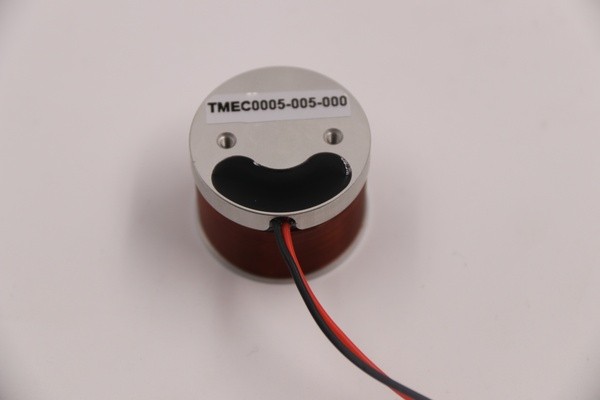

TMEC0005-005-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0005-005-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	9.0
Peak Voltage	Vp	VOLTS(V)	12.5
Peak Current	Ip	AMPS(A)	1.4
Force Constant	Kf	N/A	3.6
Back EMF Constant	Kb	Volt/(Meter·Second)(V/(m·s))	3.6
Inductance	L	Millihenry(mH)	1.0
Peak Force	Fp	Newton(N)	5.0
Continuous Thrust	Fc	Newton(N)	2.5
Motor Constant	Ka	Newton/√Watt(N/√W)	1.2
Electrical Time Constant	Te	Millisecond(ms)	0.1
Peak Power	Pp	Watt(W)	17.3
Peak Stroke	S	Millimeter(mm)	5.0
Single-sided Air Gap	CL	Millimeter(mm)	0.5
Thermal Resistance	θth	Degree Celsius/Watt(°C/W)	26.0
Maximum Winding Temperature	Tmax	Degree Celsius(°C)	150.0
Coil Weight	WTc	Gram(g)	9.0
Magnet Weight	WTf	Gram(g)	40.0
Total Motor Weight	Wta	Gram(g)	49.0
Overall Length	L	Millimeter(mm)	23.2
Outer Diameter	ФD	Millimeter(mm)	25.0

I want to customize：TMEC0005-005-000
