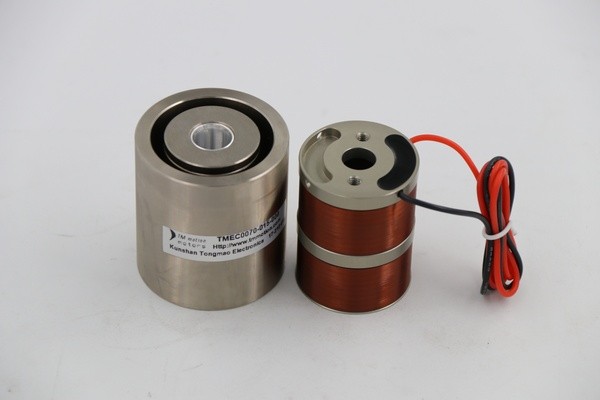

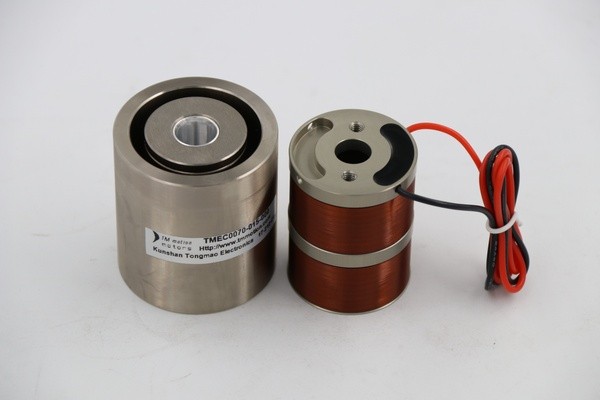

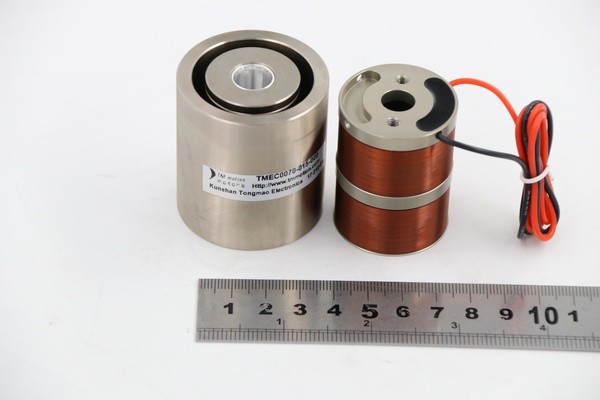

TMEC0070-015-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
DC Resistance	R	OHMS(Ω)	6.8
Peak Voltage	Vp	VOLTS(V)	27.0
Peak Current	Ip	AMPS(A)	4.0
Force Constant	Kf	N/A	17.7
Back EMF Constant	Kb	V/M/Sec	17.7
Inductance	L	Millihenry(mH)	2.5
Peak Force	Fp	Newton(N)	70.0
Continuous Thrust	Fc	Newton(N)	27.5
Motor Constant	Ka	N/√W	6.8
Electrical Time Constant	Te	Millisecond(ms)	0.4
Peak Power	Pp	Watt(W)	110.0
Peak Stroke	S	Millimeter(mm)	15.0
Single-side Air Gap	CL	Millimeter(mm)	0.4
Thermal Resistance	θth	Degree Celsius per Watt(°C/W)	7.5
Maximum Winding Temperature	Tmax	Degree Celsius(°C)	150.0
Coil Weight	WTc	Gram(g)	80.0
Magnet Weight	WTf	Gram(g)	450.0
Total Motor Weight	Wta	Gram(g)	530.0
Total Motor Length	L	Millimeter(mm)	68.7
Outer Diameter	ФD	Millimeter(mm)	45.0
Center Hole Diameter	Φd	Millimeter(mm)	10.0

I want to customize：TMEC0070-015-000
