| Parameter | Symbol | Unit | Value |
|---|---|---|---|

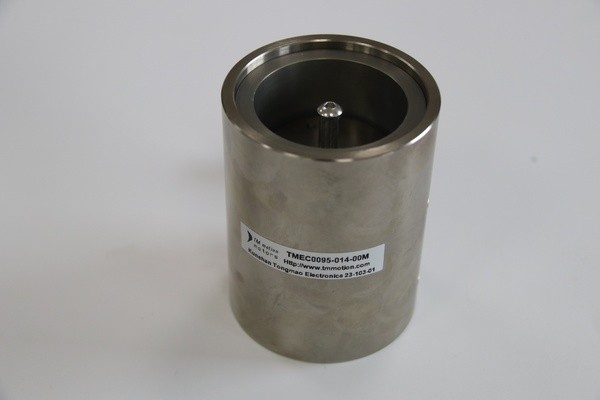

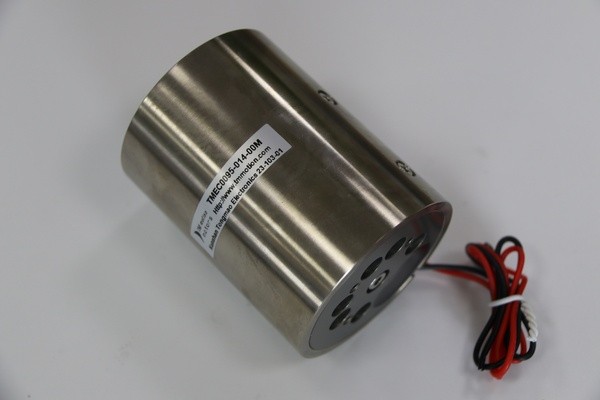

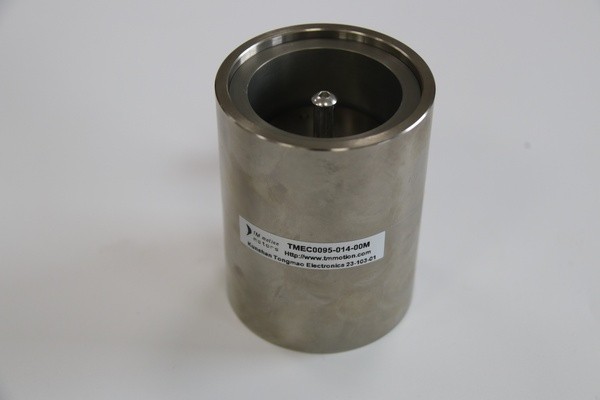

| Product Name | - | - | TMEC0095-014-00M Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 19.2 |
| Peak Voltage | Vp | VOLTS(V) | 43.6 |
| Peak Current | Ip | AMPS(A) | 2.3 |
| Force Constant | Kf | N/A | 42.2 |
| Back EMF Constant | Kb | V/M/Sec(V/(m·s)) | 42.2 |
| Inductance | L | MILLI HENRY(mH) | 11.9 |
| Peak Force | Fp | NEWTON(N) | 95.9 |
| Continuous Thrust | Fc | NEWTON(N) | 45.4 |
| Motor Constant | Ka | NEWTON PER SQUARE ROOT OF WATT(N/√W) | 9.6 |
| Electrical Time Constant | Te | MILLISECOND(ms) | 0.62 |
| Peak Power | Pp | WATT(W) | 99.2 |
| Peak Displacement | S | MILLIMETER(mm) | 14.0 |
| Unilateral Air Gap | CL | MILLIMETER(mm) | 1.2 |
| Thermal Resistance | θth | DEGREE CELSIUS PER WATT(℃/W) | 5.4 |
| Winding Maximum Temperature | Tmax | DEGREE CELSIUS(℃) | 155.0 |
| Coil Weight | WTc | GRAM(g) | 680.0 |
| Magnet Weight | WTf | GRAM(g) | 330.0 |
| Total Motor Weight | Wta | GRAM(g) | 1010.0 |
| Total Motor Length | L | MILLIMETER(mm) | 78.0 |
| Outer Diameter | ФD | MILLIMETER(mm) | 60.0 |
