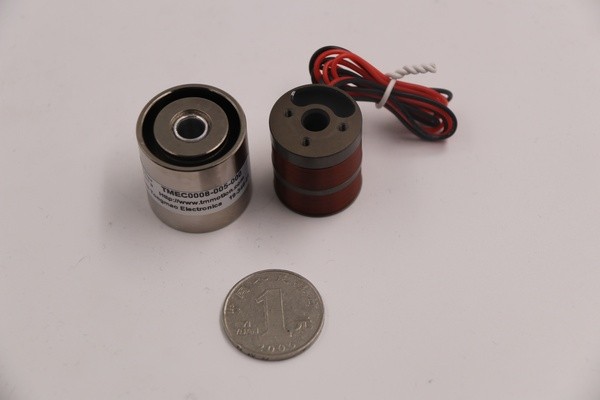

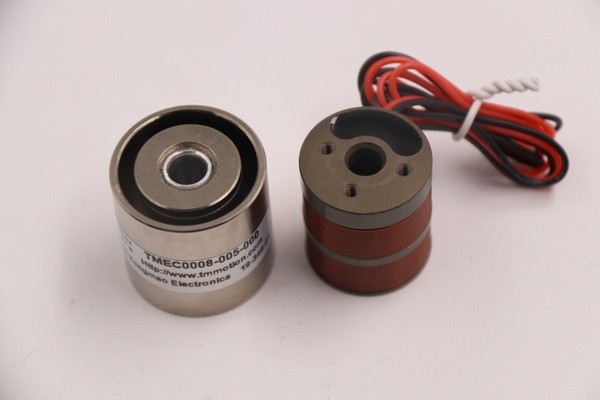

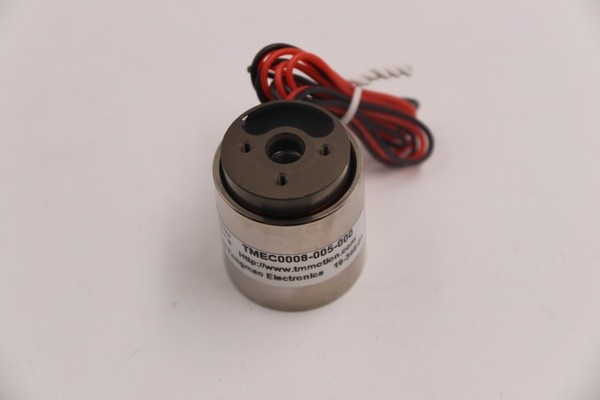

TMEC0008-005-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMEC0008-005-000 Voice Coil Motor
DC Resistance	R	OHMS(Ω)	3.1
Peak Voltage	Vp	VOLTS(V)	3.9
Peak Current	Ip	AMPS(A)	1.2
Force Constant	Kf	N/A	7.2
Back EMF Constant	Kb	Volts per Meter per Second(V/(m·s))	7.2
Inductance	L	Millihenry(mH)	0.34
Peak Force	Fp	Newton(N)	8.9
Continuous Thrust	Fc	Newton(N)	5.3
Motor Constant	Ka	Newton per Square Root Watt(N/√W)	4.1
Electrical Time Constant	Te	Millisecond(ms)	0.11
Peak Power	Pp	Watt(W)	4.8
Peak Displacement	S	Millimeter(mm)	5.0
Unilateral Air Gap	CL	Millimeter(mm)	0.5
Thermal Resistance	θth	Celsius per Watt(°C/W)	24.6
Maximum Winding Temperature	Tmax	Celsius(°C)	80.0
Coil Weight	WTc	Gram(g)	16.2
Magnet Weight	WTf	Gram(g)	75.2
Total Motor Weight	Wta	Gram(g)	91.4
Overall Length	L	Millimeter(mm)	37.3
Outer Diameter	ФD	Millimeter(mm)	27.0
Center Hole Diameter	Фd	Millimeter(mm)	6.0
