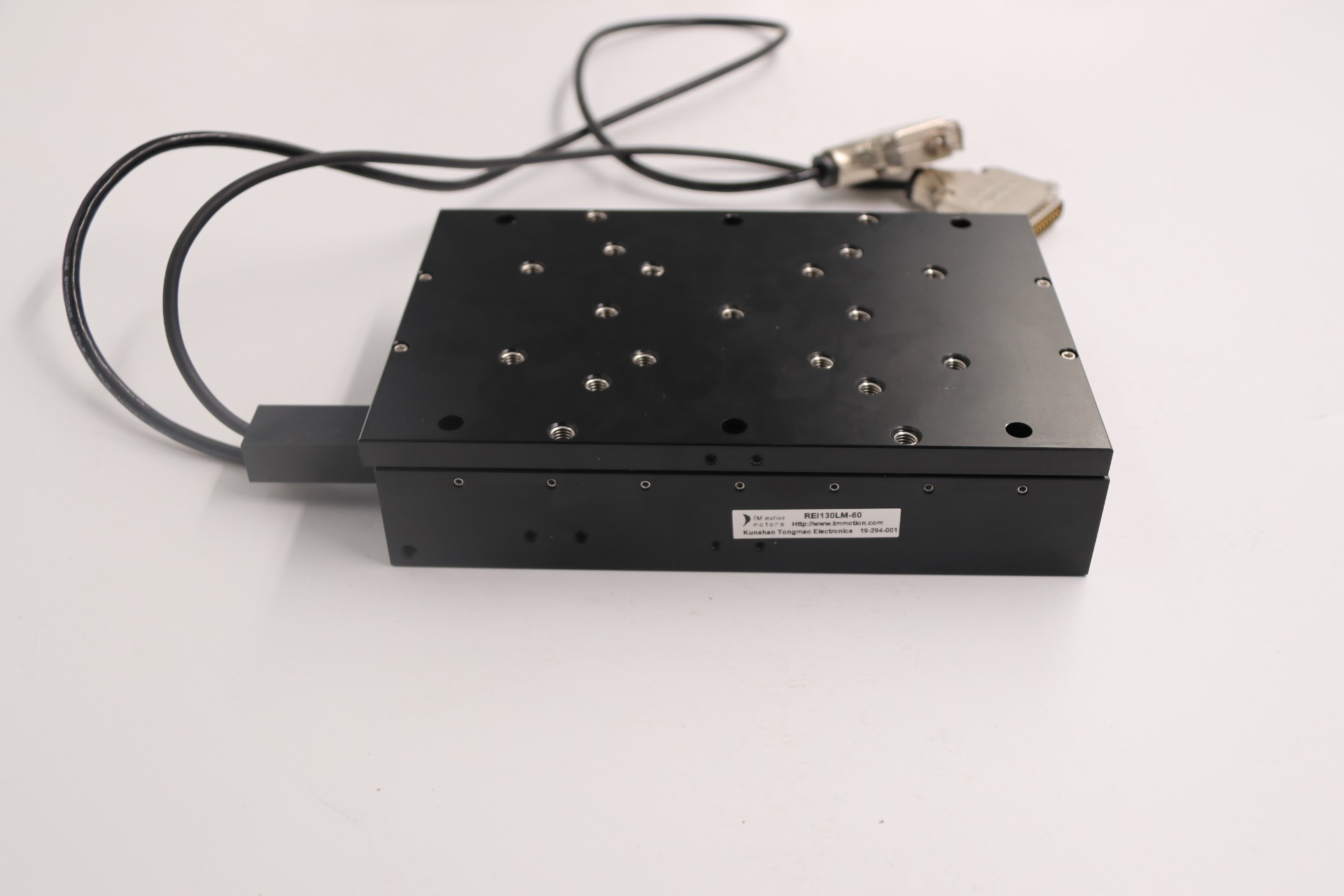

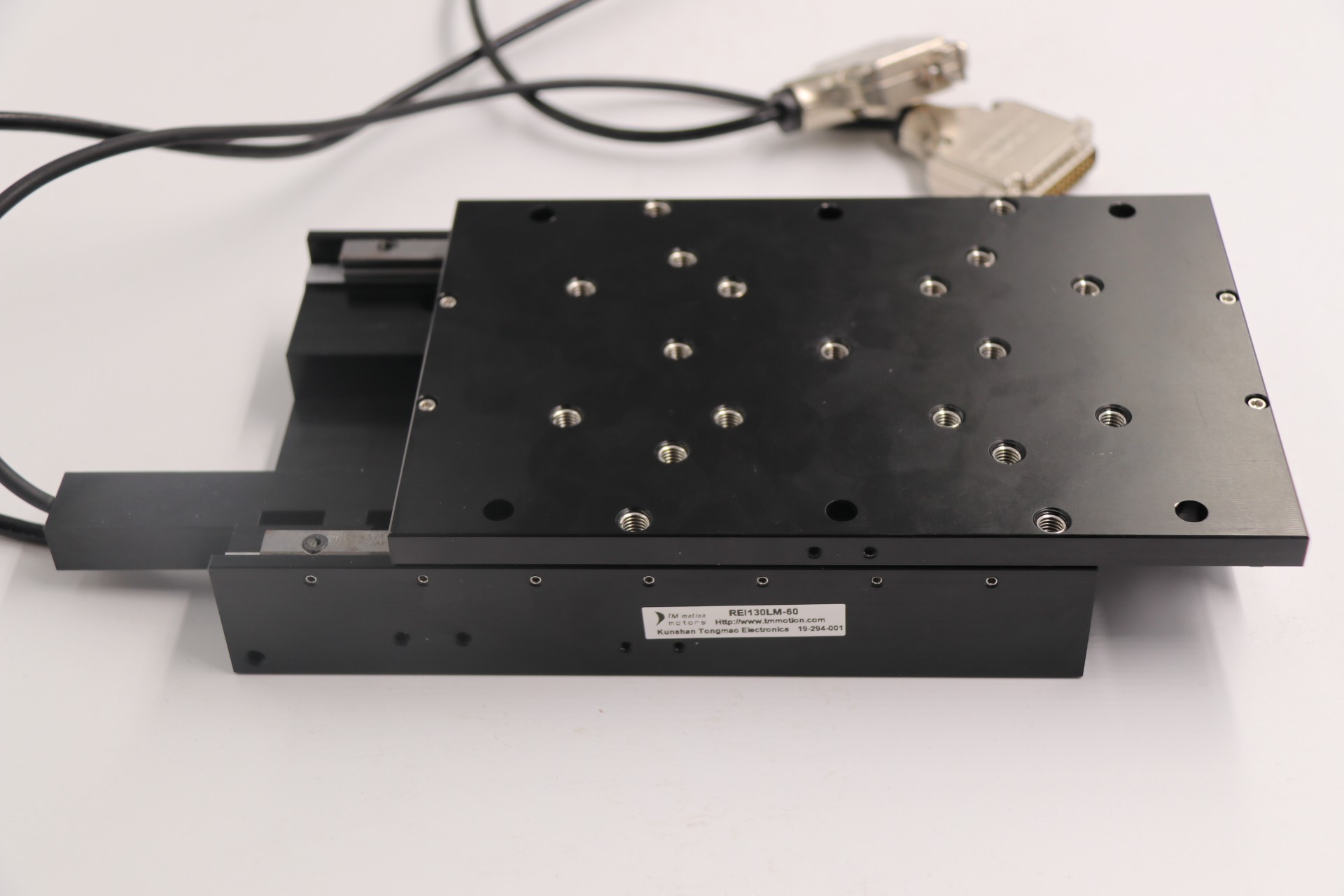

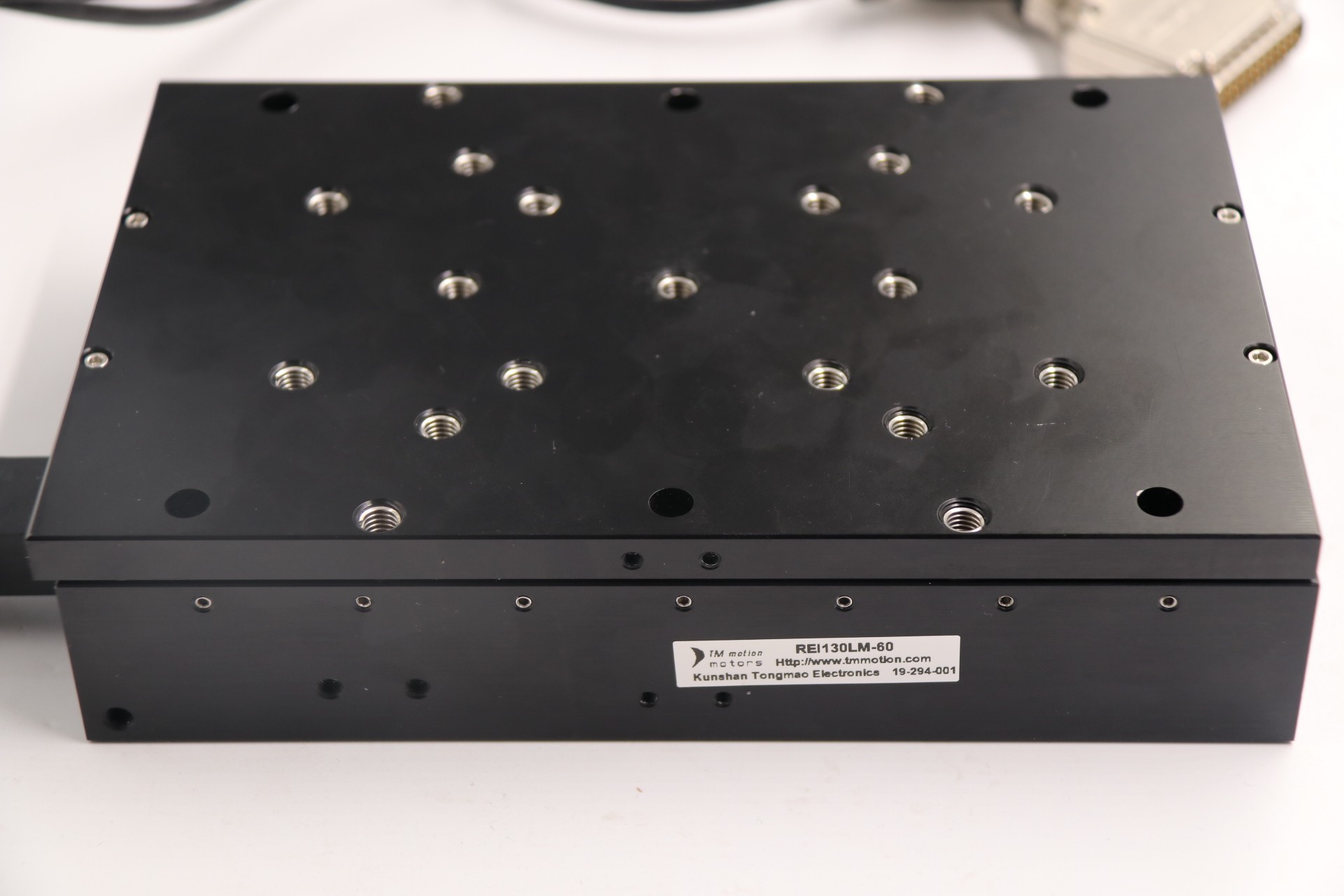

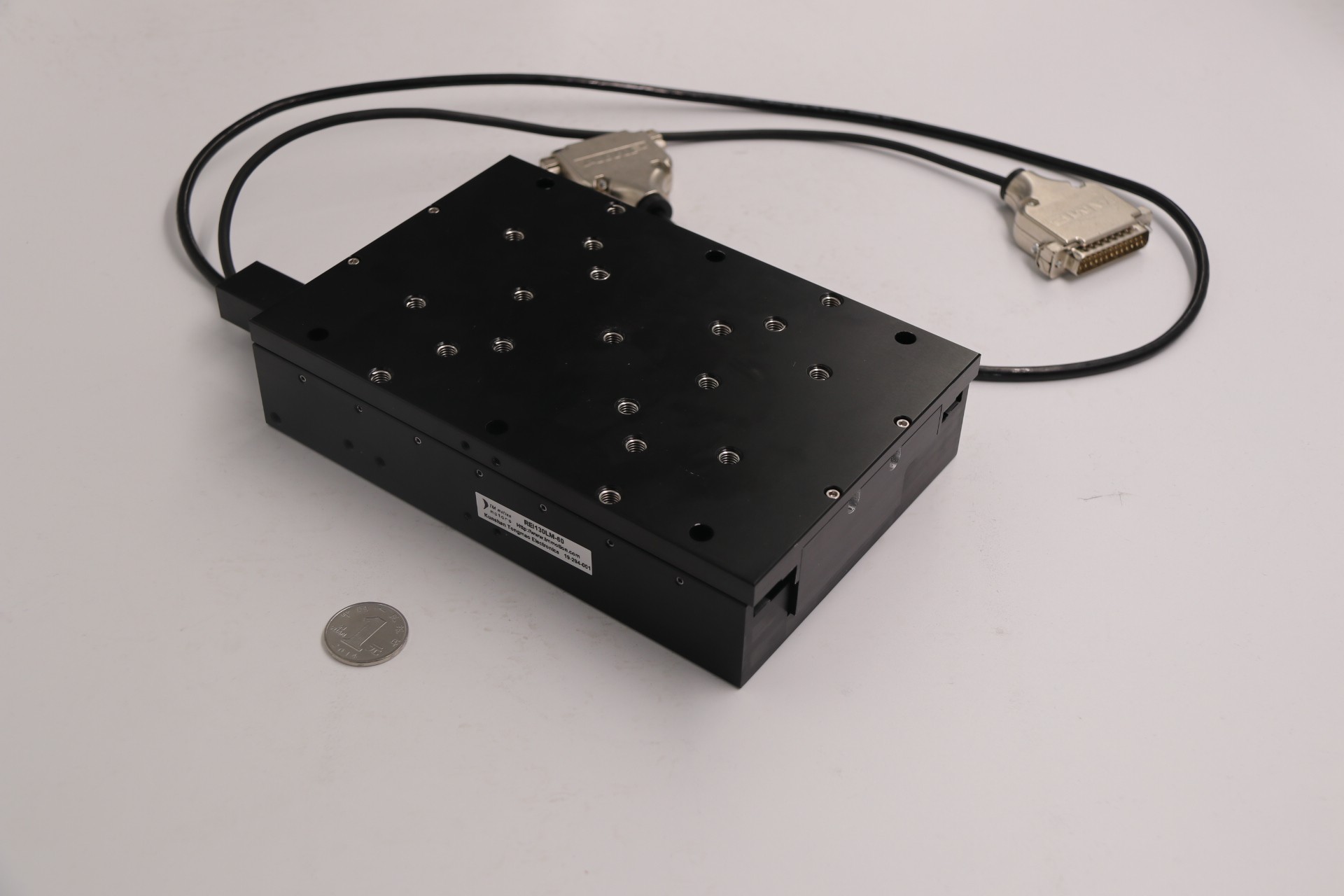

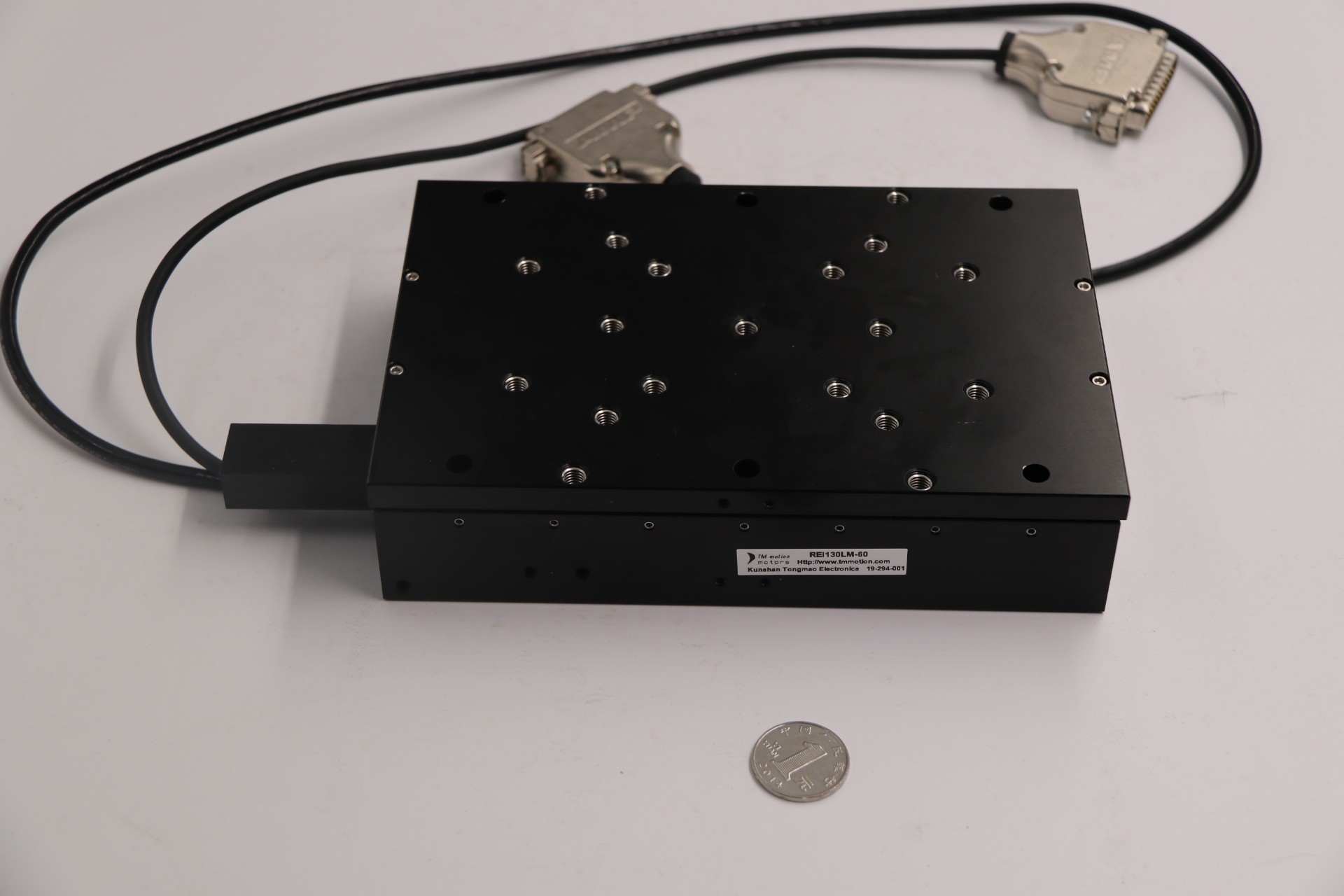

TMPT-LM-REI130LM-60|TM

Linear motor module

Whatsapp：0086-18994336588

1/5

上一张

下一张

Product details

Product Introduction

Product Information
Product Name	Linear Motor Module TMPT-LM-PNKP03701001-1914401
Motor Parameters
Parameter Item	Symbol	Unit	Value
Travel	Travel	mm	370
Positioning Accuracy (1)	Standard	μm	±15
Positioning Accuracy (1)	Factor	μm	±5
Resolution	Resolution	μm	0.5
Bi-Directional Repeatability (1)	Bi-Directional	μm	±2
Straightness (1)	Straightness	μm	±7.5
Flatness (1)	Flatness	μm	±7.5
Pitch Error (1)	Pitch	arc sec	15
Roll Error	Roll	arc sec	15
Yaw Error (1)	Yaw	arc sec	20
Peak Speed (3) (No Load)	Maximum Speed	mm/s	2000
Peak Acceleration (3) (No Load)	Maximum Acceleration	g	5
Peak Continuous Force	Maximum Continuous Force	N	70
Load Capacity (2)	Horizontal	Kg	45
Load Capacity (2)	Side	Kg	45
Moving Mass	Moving Mass	Kg	2.7
Stage Mass	Stage Mass	Kg	12
Material	Aluminum Profile

I want to customize：TMPT-LM-REI130LM-60
