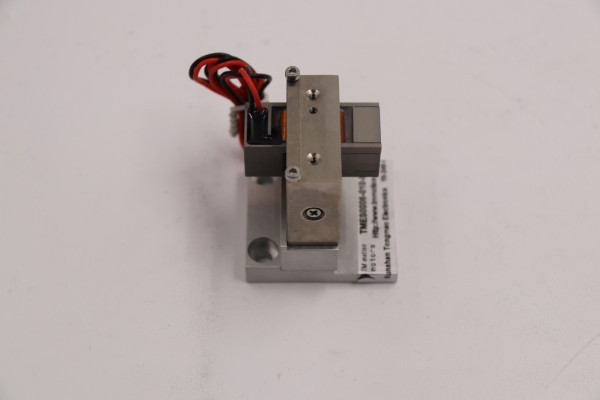

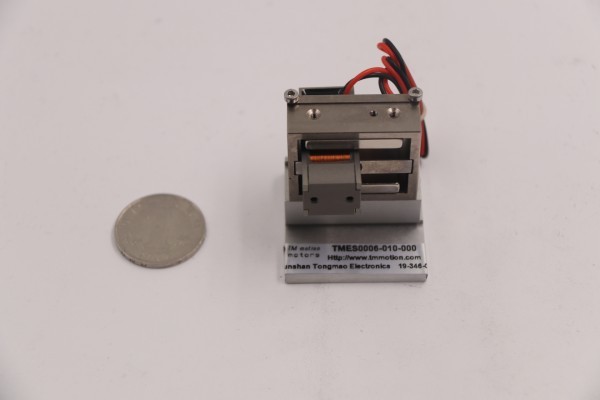

TMES0060-100-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMES0060-100-000 (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	4.2
Peak Voltage	Vp	VOLTS (V)	28
Peak Current	Ip	AMPS (A)	6.7
Force Constant	Kf	N/A	9
Back EMF	Kb	V/M/Sec	9
Inductance	L	mH	3.5
Peak Force	Fp	N	60
Continuous Thrust	Fc	N	21
Motor Constant	Ka	N/√W	4.4
Time Constant	Te	milli-sec (ms)	0.8
Peak Power	Pp	W (Watts)	190
Peak Displacement	S	mm (Millimeters)	100
Single-Side Air Gap	CL	mm (Millimeters)	0.5
Thermal Resistance	θth	°C/W	5.5
Winding Temperature	Tmax	°C (Celsius)	150
Coil Weight	WTc	g (Grams)	140
Magnet Weight	WTf	g (Grams)	3720
Motor Weight	Wta	g (Grams)	3860
Total Length	L	mm (Millimeters)	170
Total Width	W	mm (Millimeters)	60.1
Total Height	H	mm (Millimeters)	82

I want to customize：TMES0060-100-000
