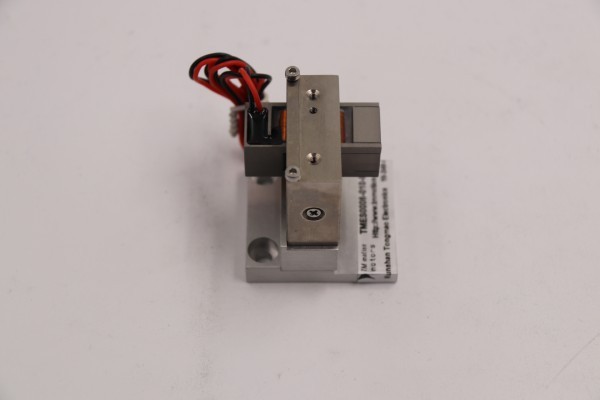

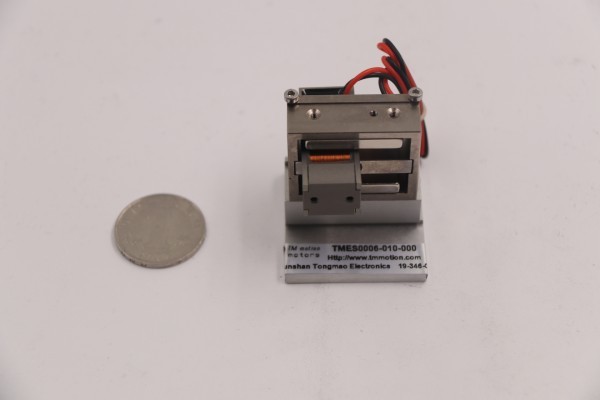

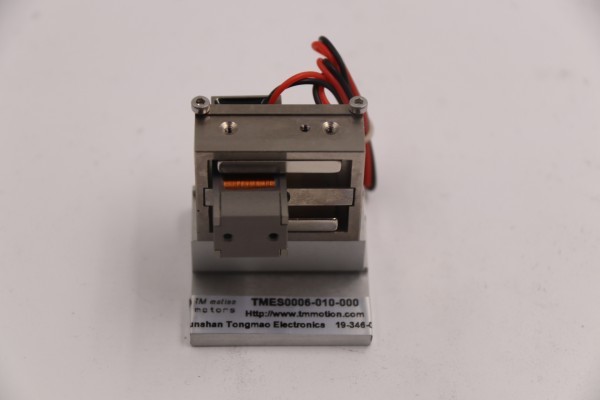

TMES0006-010-000|TM

Voice coil motor

Whatsapp：0086-18994336588

1/3

上一张

下一张

Product details

Product Introduction

Parameter	Symbol	Unit	Value
Product Name	-	-	TMES0006-010-000 (Voice Coil Motor)
DC Resistance	R	OHMS (Ω)	10
Peak Voltage	Vp	VOLTS (V)	13.3
Peak Current	Ip	AMPS (A)	1.3
Force Constant	Kf	N/A	4.5
Back EMF	Kb	V/M/Sec	4.5
Inductance	L	mH	2.0
Peak Force	Fp	N	6
Continuous Thrust	Fc	N	3.2
Motor Constant	Ka	N/√W	1.5
Time Constant	Te	milli-sec (ms)	0.2
Peak Power	Pp	W (Watts)	17.7
Peak Displacement	S	mm (Millimeters)	10.0
Single-Side Air Gap	CL	mm (Millimeters)	0.5
Thermal Resistance	θth	°C/W	25.3
Winding Temperature	Tmax	°C (Celsius)	150
Coil Weight	WTc	g (Grams)	18
Magnet Weight	WTf	g (Grams)	70
Motor Weight	Wta	g (Grams)	88
Total Length	L	mm (Millimeters)	34
Total Width	W	mm (Millimeters)	34.1
Total Height	H	mm (Millimeters)	27
