Product Introduction
| Product Information | |||
|---|---|---|---|

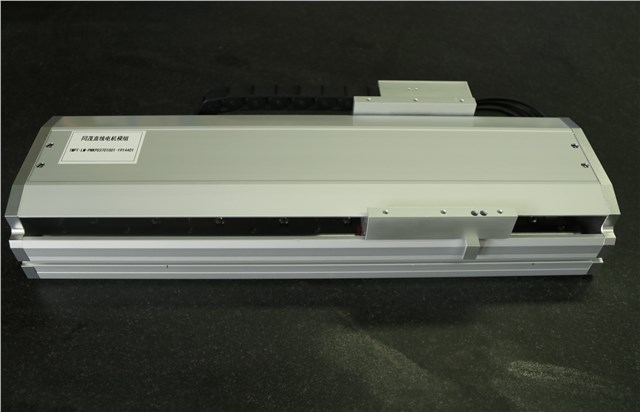

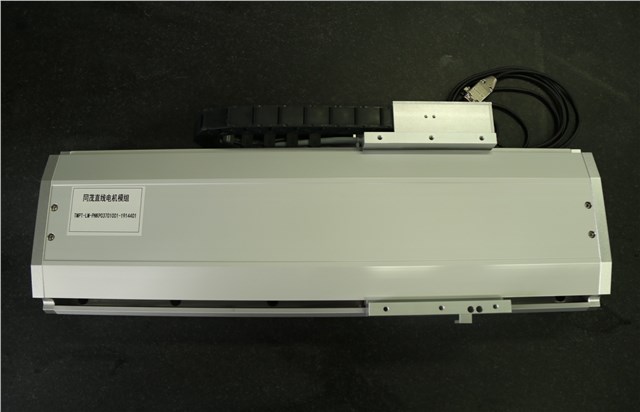

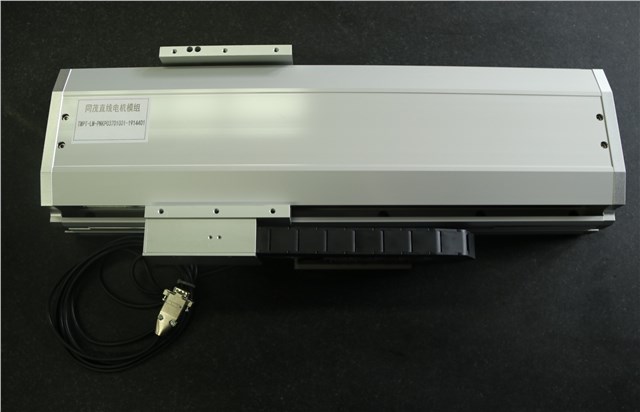

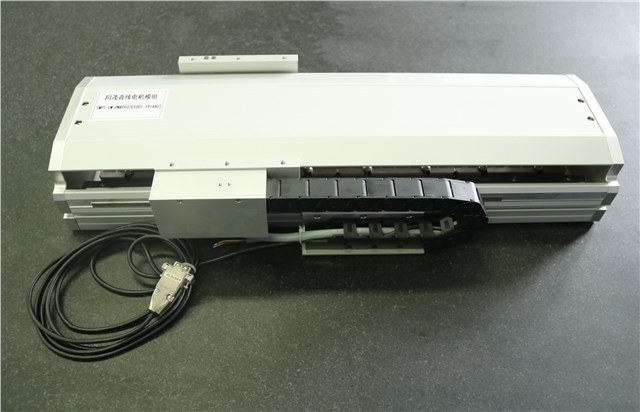

| Product Name | Linear Motor Module TMPT-LM-PNKP03701001-1914401 | ||
| Motor Parameters | |||
| Parameter Item | Symbol | Unit | Value |
| Travel | Travel | mm | 370 |
| Positioning Accuracy (1) | Standard | μm | ±15 |
| Factor | μm | ±5 | |
| Resolution | Resolution | μm | 0.5 |
| Bi-Directional Repeatability (1) | Bi-Directional | μm | ±2 |
| Straightness (1) | Straightness | μm | ±7.5 |
| Flatness (1) | Flatness | μm | ±7.5 |
| Pitch Error (1) | Pitch | arc sec | 15 |
| Roll Error | Roll | arc sec | 15 |
| Yaw Error (1) | Yaw | arc sec | 20 |
| Peak Speed (3) (No Load) | Maximum Speed | mm/s | 2000 |
| Peak Acceleration (3) (No Load) | Maximum Acceleration | g | 5 |
| Peak Continuous Force | Maximum Continuous Force | N | 70 |
| Load Capacity (2) | Horizontal | Kg | 45 |
| Side | Kg | 45 | |
| Moving Mass | Moving Mass | Kg | 2.7 |
| Stage Mass | Stage Mass | Kg | 12 |
| Material | Aluminum Profile | ||
