Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

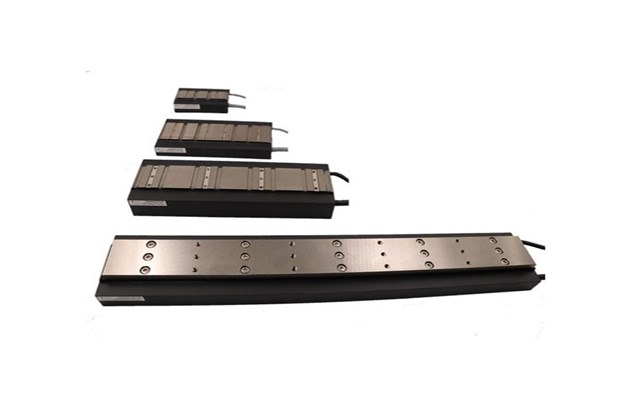

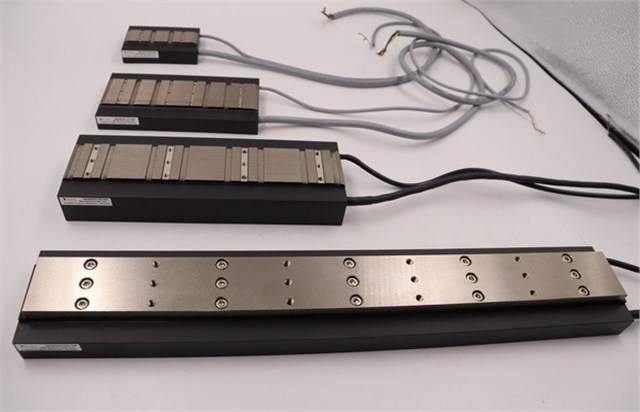

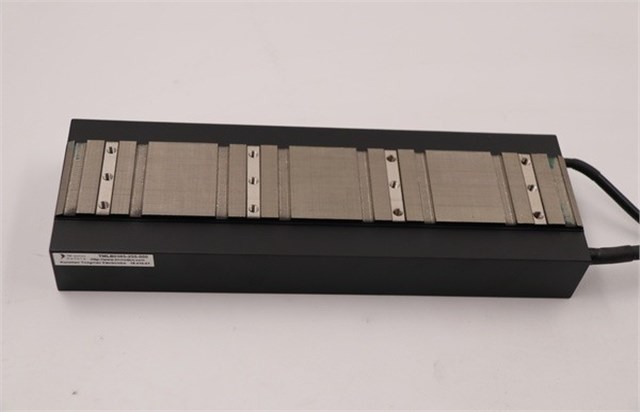

| Product Name | - | - | TMLB0365-255-000 Flat Linear Motor |
| Withstand Voltage | - | - | AC1500V 1min |
| Insulation Resistance | - | - | ≥100MΩ @ DC500V |
| Ambient Temperature | - | Degree Celsius(℃) | 0~40 |
| Ambient Humidity | - | %RH | 20~80 |
| Cooling Method | - | - | Natural Cooling |
| Peak Coil Temperature | - | Degree Celsius(℃) | 130 (Class E) |
| Compatible Stator Models | - | - | TMSB-064-000, TMSB-128-000, TMSB-128-000-365, TMSB-512-000-600 |
| Resistance @25℃ | R | OHMS(Ω) | 17.5 |
| Peak Current | Ip | Ampere RMS(Arms) | 6.2 |
| Continuous Current | Ic | Ampere RMS(Arms) | 1.8 |
| Force Constant | Kf | Newton per Ampere RMS(N/Arms) | 207.8 |
| Back EMF Constant | Kb | Volt RMS per Meter per Second(Vrms/(m/s)) | 120.0 |
| Inductance | L | Millihenry(mH) | 160.0 |
| Peak Force | Fp | Newton(N) | 1250.0 |
| Continuous Thrust | Fc | Newton(N) | 365.0 |
| Motor Constant | Ka | Newton per Square Root Watt(N/√W) | 40.6 |
| Electrical Time Constant | Te | Millisecond(ms) | 9.5 |
| Input Voltage | Udc | Volt DC(VDC) | 300.0 |
| Pole Pitch | 2tP | Millimeter(mm) | 32.0 |
| Electromagnetic Attraction | Fa | Newton(N) | 2600.0 |
| Maximum Winding Temperature | Tmax | Degree Celsius(℃) | 130.0 |
| Installation Gap | Gm | Millimeter(mm) | 0.9 |
| Coil Weight | WTc | Kilogram(kg) | 4.3 |
| Overall Length | L | Millimeter(mm) | 255.0 |
| Stator Length (Model: TMSB-064-000) | L | Millimeter(mm) | 64.0 |
| Stator Width (Model: TMSB-064-000) | W | Millimeter(mm) | 80.0 |
| Stator Thickness (Model: TMSB-064-000) | T | Millimeter(mm) | 12.0 |
| Magnetic Track Weight (Model: TMSB-064-000) | WTa | Kilogram per Meter(kg/m) | 6.4 |
| Stator Length (Model: TMSB-128-000) | L | Millimeter(mm) | 128.0 |
| Stator Width (Model: TMSB-128-000) | W | Millimeter(mm) | 80.0 |
| Stator Thickness (Model: TMSB-128-000) | T | Millimeter(mm) | 12.0 |
| Magnetic Track Weight (Model: TMSB-128-000) | WTa | Kilogram per Meter(kg/m) | 6.5 |
| Stator Length (Model: TMSB-128-000-365) | L | Millimeter(mm) | 128.0 |
| Stator Width (Model: TMSB-128-000-365) | W | Millimeter(mm) | 80.0 |
| Stator Thickness (Model: TMSB-128-000-365) | T | Millimeter(mm) | 12.0 |
| Magnetic Track Weight (Model: TMSB-128-000-365) | WTa | Kilogram per Meter(kg/m) | 6.4 |
| Stator Length (Model: TMSB-512-000-600) | L | Millimeter(mm) | 512.0 |
| Stator Width (Model: TMSB-512-000-600) | W | Millimeter(mm) | 80.0 |
| Stator Thickness (Model: TMSB-512-000-600) | T | Millimeter(mm) | 12.0 |
| Magnetic Track Weight (Model: TMSB-512-000-600) | WTa | Kilogram per Meter(kg/m) | 6.4 |
| Optional Accessories | - | - | TMHC-01/03/05/09/15 |
