Product Introduction

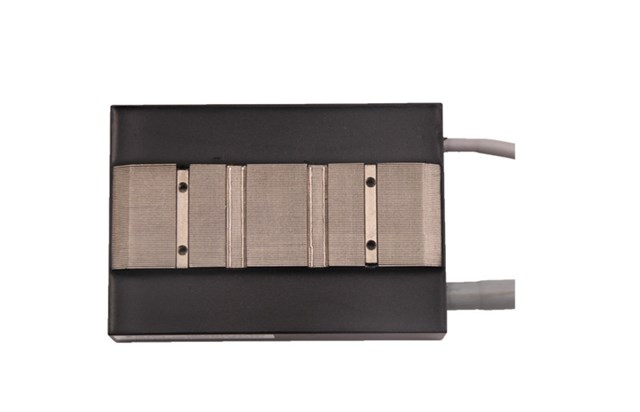

| Product Name | TMLA0070-095-000 | Flat linear motor | |
| Insulation withstand voltage: | AC1500 1min | Insulation resistance: | DC 500V, 100M or above |
| Environmental temperature: | 0 - 40 degrees | Environmental humidity: | 20% - 80% |
| Cooling method: | Natural cooling | Peak temperature of coil: | 130℃ (E grade) |
| Motor parameters | Symbol | Organization | Numerical value |
| Resistance @ 25℃ | R | OHMS | 2.8 |
| Peak current | Ip | Arms | 26 |
| Continuous current | Ic | Arms | 2.5 |
| Force constant value | Kf | N/Arms | 32 |
| Reverse electromotive force | Kb | Vrms/M/S | 18.5 |
| Inductance | L | mH | 11.8 |
| Peak force | Fp | N | 280 |
| Continuous thrust | Fc | N | 70 |
| Motor constant | Ka | N/√w | 15.5 |
| Time constant | Te | ms | 4.3 |
| Input voltage | Udc | VDC | 300 |
| Extremely small distance | 2tP | mm | 32 |
| Electromagnetic attraction | Fa | N | 590 |
| Winding temperature | Tmax | C | 130 |
| Installation gap | Gm | mm | 1 |
| Coil weight | WTc | Kg | 0.7 |
| Total length | L | mm | 95 |
