Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

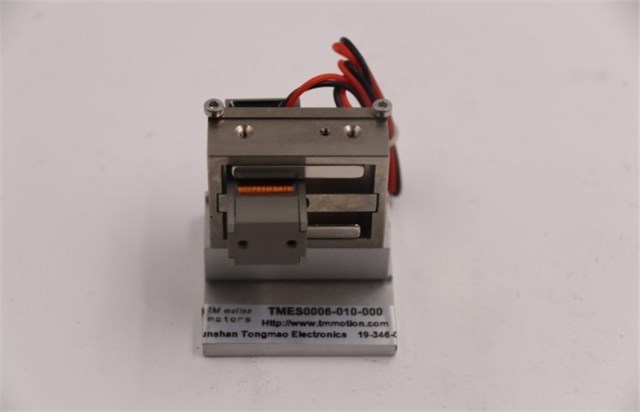

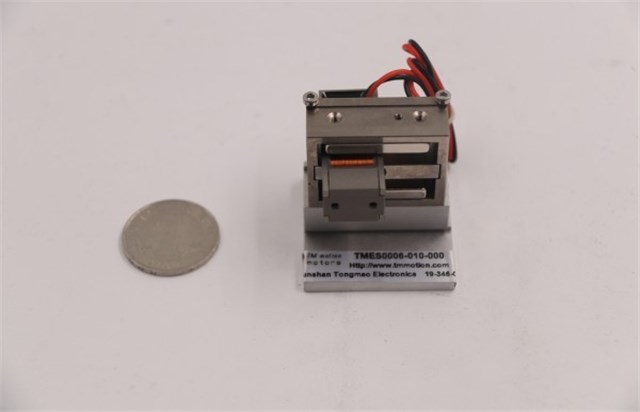

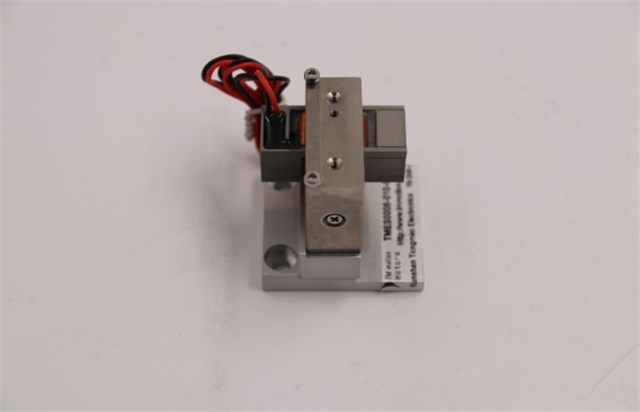

| Product Name | - | - | TMES0006-010-000 (Voice Coil Motor) |
| DC Resistance | R | OHMS (Ω) | 10 |
| Peak Voltage | Vp | VOLTS (V) | 13.3 |
| Peak Current | Ip | AMPS (A) | 1.3 |
| Force Constant | Kf | N/A | 4.5 |
| Back EMF | Kb | V/M/Sec | 4.5 |
| Inductance | L | mH | 2.0 |
| Peak Force | Fp | N | 6 |
| Continuous Thrust | Fc | N | 3.2 |
| Motor Constant | Ka | N/√W | 1.5 |
| Time Constant | Te | milli-sec (ms) | 0.2 |
| Peak Power | Pp | W (Watts) | 17.7 |
| Peak Displacement | S | mm (Millimeters) | 10.0 |
| Single-Side Air Gap | CL | mm (Millimeters) | 0.5 |
| Thermal Resistance | θth | °C/W | 25.3 |
| Winding Temperature | Tmax | °C (Celsius) | 150 |
| Coil Weight | WTc | g (Grams) | 18 |
| Magnet Weight | WTf | g (Grams) | 70 |
| Motor Weight | Wta | g (Grams) | 88 |
| Total Length | L | mm (Millimeters) | 34 |
| Total Width | W | mm (Millimeters) | 34.1 |
| Total Height | H | mm (Millimeters) | 27 |
