Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

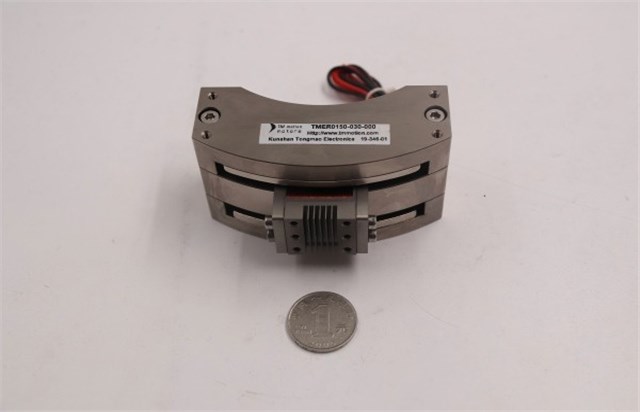

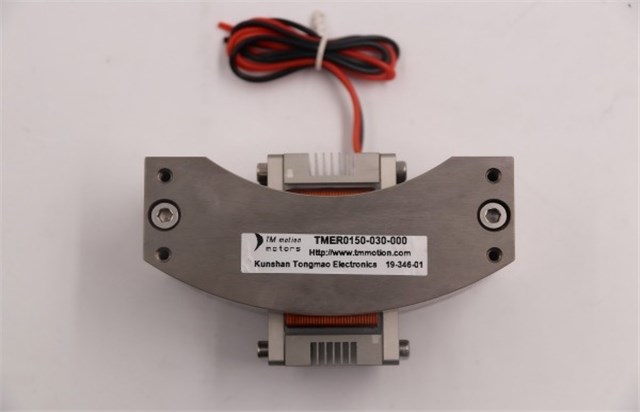

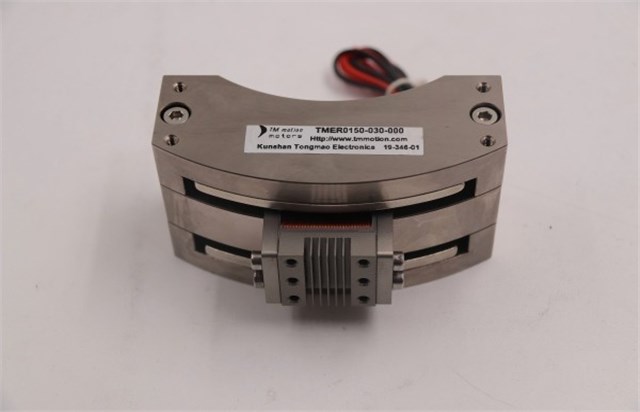

| Product Name | - | - | TMER0150-030-000 (Voice Coil Motor) |
| DC Resistance | R | OHMS (Ω) | 3.7 |
| Peak Voltage | Vp | VOLTS (V) | 14.5 |
| Peak Current | Ip | AMPS (A) | 3.9 |
| Torque Constant | Kt | N-m / A | 0.4 |
| Back EMF | Kb | V/Rad/Sec | 0.4 |
| Inductance | L | mH | 1.1 |
| Peak Torque | Fp | N-m | 1.5 |
| Continuous Torque | Tcs | N-m | 0.7 |
| Motor Constant | Ka | N-m/√W | 0.2 |
| Time Constant | Te | milli-sec (ms) | 0.3 |
| Peak Power | Pp | W (Watts) | 57.6 |
| Rotation Angle | S | degree (°) | 30 |
| Single-Side Air Gap | CL | mm (Millimeters) | 1.0 |
| Thermal Resistance | θth | °C/W | 10 |
| Winding Temperature | Tmax | °C (Celsius) | 155 |
| Coil Weight | WTc | g (Grams) | 80 |
| Moment of Inertia | Ic | g-cm² | 3300 |
| Magnet Weight | WTf | g (Grams) | 880 |
| Motor Weight | Wta | g (Grams) | 960 |

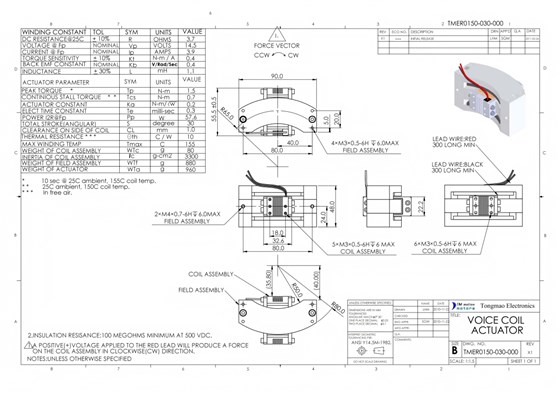

| Total Length | L | mm (Millimeters) | 90 |
| Total Width | W | mm (Millimeters) | 55.5 |
| Total Height | H | mm (Millimeters) | 48 |
