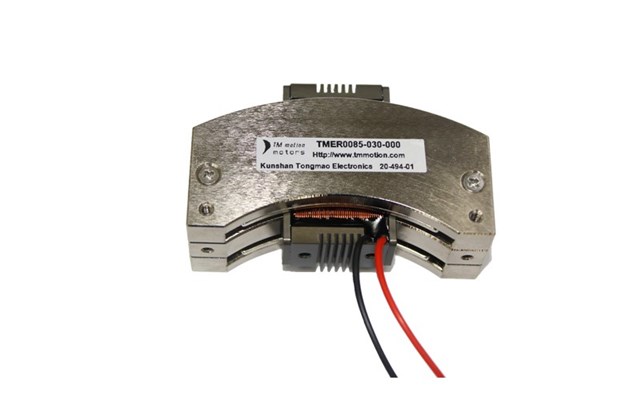

TMER0085-030-000

TMER0085-030-000

The coreless AC brushless linear motors (linear motors, linear motors) we provide are applied in servo systems. We offer standard magnetic rails and can be made into platform systems, multi-axis systems, and can also be customized according to customer requirements.
Product Introduction
TMER0085-030-000 Voice coil motor
Symbol unit value
R OHMS 1.5
Vp VOLTS 6.3
Ip AMPS 4.2
Kt N-m / A 0.2
Kb V/Rad/Sec 0.2
L mH 0.6
Fp N-m 0.85
Tcs N-m 0.6
Ka N-m/√w 0.16
Te milli-sec 0.4
Pp W 26.4
S degree 30
CL mm 0.5
θth C/W 9
Tmax C 150
WTc g 60
Ic g-cm2 2200
WTf g 490
Wta g 550
L mm 80
W mm 49.3
H mm 31
