Product Introduction

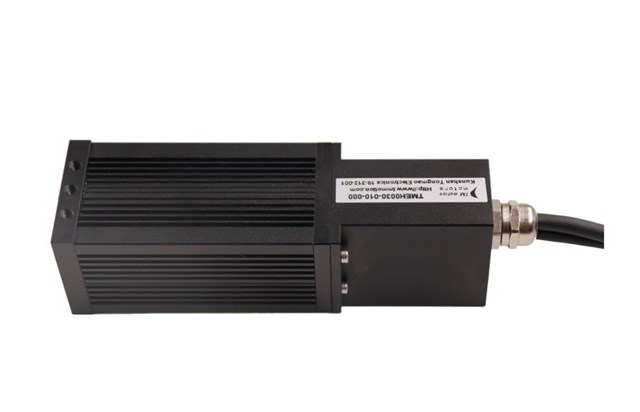

| Product Name: | TMEH0030-010-000 | Voice coil motor | |
| Motor parameters | Symbol | Organization | Numerical value |
| DC resistance | R | OHMS | 3.3 |
| Peak voltage | Vp | VOLTS | 11.8 |
| Peak current | Ip | AMPS | 3.6 |
| Force constant value | Kf | N/A | 8.2 |
| Reverse electromotive force | Kb | V/M/Sec | 8.2 |
| Inductance | L | mH | 1.75 |
| Peak force | Fp | N | 29.3 |
| Continuous thrust | Fc | N | 13.6 |
| Motor constant | Ka | N/√w | 4.5 |
| Time constant | Te | ms | 0.53 |
| Peak power | Pp | W | 42.1 |
| Peak displacement | S | mm | 10.0 |
| Single-sided air gap | CL | mm | 0.2 |
| Heat resistance | θth | C/W | 6.0 |
| Winding temperature | Tmax | C | 100 |
| Coil weight | WTc | g | 373 |
| Magnet weight | WTf | g | 79 |
| Motor weight | Wta | g | 452 |
| Total length of the motor | L | mm | 180 |
| Outer diameter | ФD | mm | 42.88 |
