Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

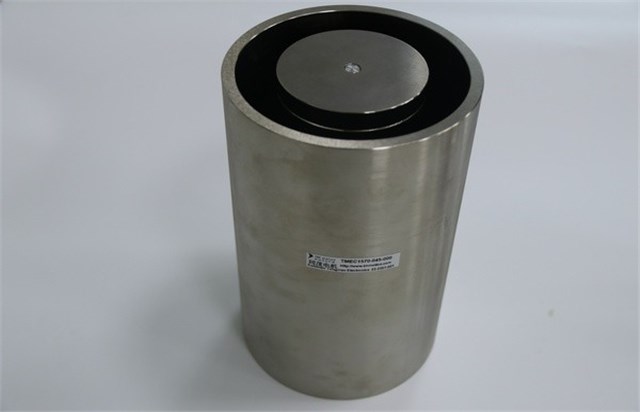

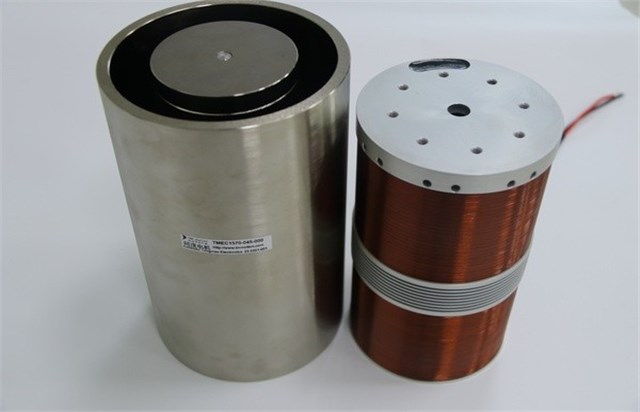

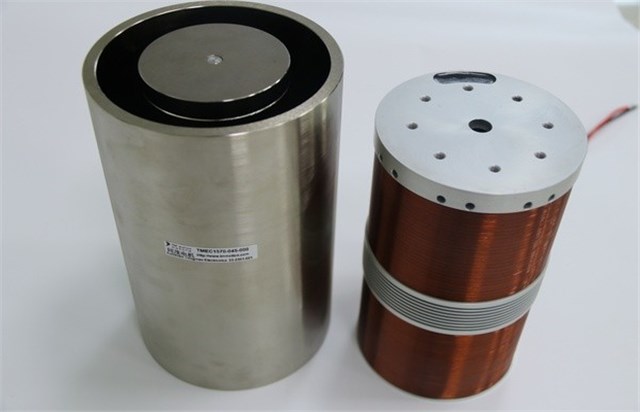

| Product Name | TMEC1570-045-000 Voice Coil Motor | ||
| DC Resistance | R | OHMS(Ω) | 9.7 |
| Peak Voltage | Vp | VOLTS(V) | 137.8 |
| Peak Current | Ip | AMPS(A) | 14.2 |
| Force Constant | Kf | N/A | 110.5 |
| Back EMF Constant | Kb | V/M/Sec | 110.5 |
| Inductance | L | mH | 17.6 |
| Peak Force | Fp | N | 1570.0 |
| Continuous Thrust | Fc | N | 347.9 |
| Motor Constant | Ka | N/√W | 35.5 |
| Electrical Time Constant | Te | ms | 1.8 |
| Peak Power | Pp | W | 1958.2 |
| Peak Stroke | S | mm | 45.0 |
| Single-side Air Gap | CL | mm | 4.0 |
| Thermal Resistance | θth | C/W(℃/W) | 1.3 |
| Maximum Winding Temperature | Tmax | C(℃) | 150.0 |
| Coil Weight | WTc | Kg | 2.6 |
| Magnet Weight | WTf | Kg | 9.4 |
| Total Motor Weight | Wta | Kg | 12.0 |
| Total Motor Length | L | mm | 253.4 |
| Outer Diameter | ФD | mm | 120.0 |
