Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

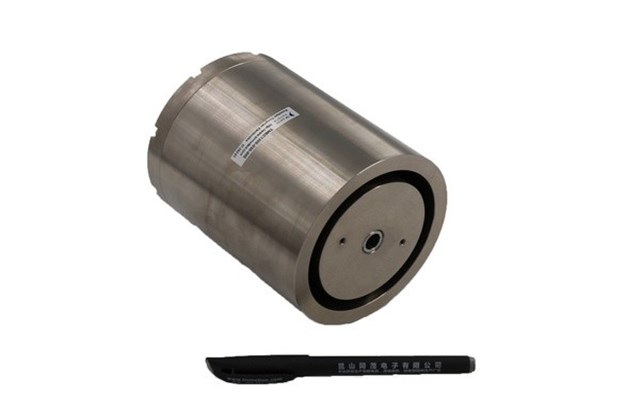

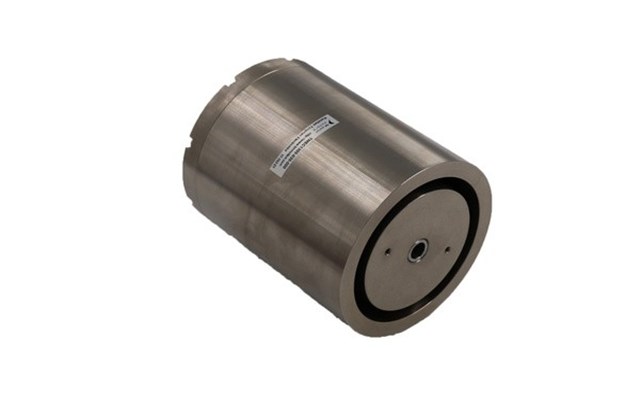

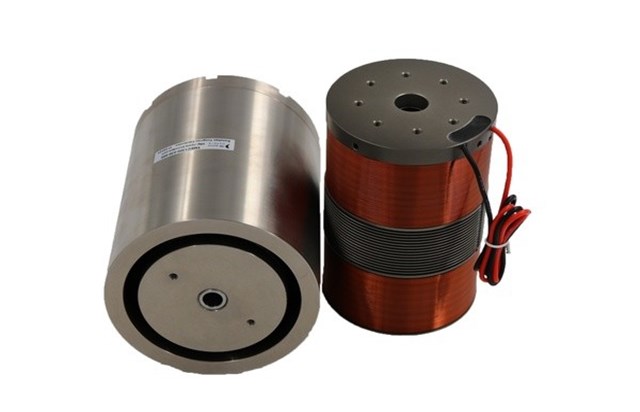

| Product Name | - | - | TMEC1300-030-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 3.7 |
| Peak Voltage | Vp | VOLTS(V) | 72.2 |
| Peak Current | Ip | AMPS(A) | 19.5 |
| Force Constant | Kf | N/A | 70.0 |
| Back EMF Constant | Kb | VOLTS PER METER PER SECOND(V/(m/s)) | 70.0 |
| Inductance | L | MILLIHENRIES(mH) | 6.0 |
| Peak Force | Fp | NEWTONS(N) | 1364.7 |
| Continuous Thrust | Fc | NEWTONS(N) | 385.0 |
| Motor Constant | Ka | NEWTONS PER SQUARE ROOT WATT(N/√W) | 36.4 |
| Electrical Time Constant | Te | MILLISECONDS(ms) | 1.6 |
| Peak Power | Pp | WATTS(W) | 1406.0 |
| Peak Displacement | S | MILLIMETERS(mm) | 30.0 |
| Single-sided Air Gap | CL | MILLIMETERS(mm) | 0.5 |
| Thermal Resistance | θth | DEGREES CELSIUS PER WATT(°C/W) | 1.1 |
| Maximum Winding Temperature | Tmax | DEGREES CELSIUS(°C) | 150.0 |
| Coil Weight | WTc | GRAMS(g) | 1050.0 |
| Magnet Weight | WTf | GRAMS(g) | 7860.0 |
| Total Motor Weight | Wta | GRAMS(g) | 8910.0 |
| Total Motor Length | L | MILLIMETERS(mm) | 175.0 |
| Outer Diameter | ФD | MILLIMETERS(mm) | 110.0 |
| Center Hole Diameter | Фd | MILLIMETERS(mm) | 10.0 |
