Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

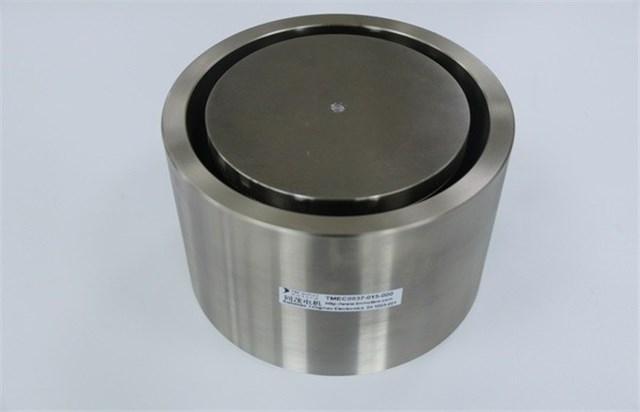

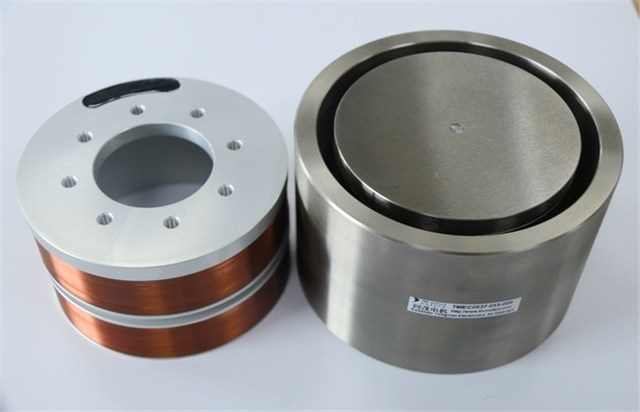

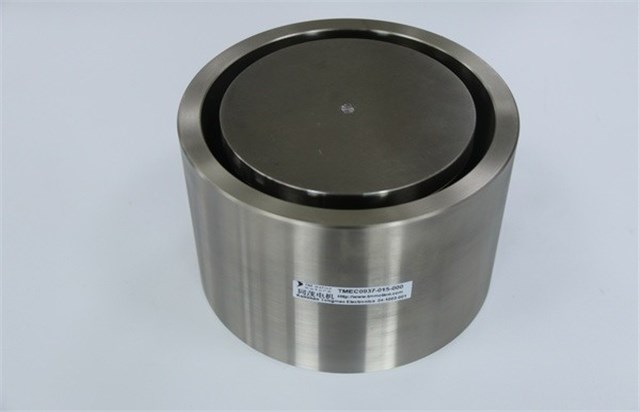

| Product Name | - | - | TMEC0937-015-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 19.9 |
| Peak Voltage | Vp | VOLTS(V) | 98.1 |
| Peak Current | Ip | AMPS(A) | 4.9 |
| Force Constant | Kf | N/A | 190.1 |
| Back EMF Constant | Kb | V/M/Sec | 190.1 |
| Inductance | L | mH | 14.4 |
| Peak Force | Fp | N | 937.0 |
| Continuous Thrust | Fc | N | 309.6 |
| Motor Constant | Ka | N/√w | 42.6 |
| Electrical Time Constant | Te | ms | 0.72 |
| Peak Power | Pp | W | 483.5 |
| Peak Displacement | S | mm | 15.0 |
| Single-side Air Gap | CL | mm | 1.0 |
| Thermal Resistance | θth | C/W | 1.8 |
| Maximum Winding Temperature | Tmax | C | 120.0 |
| Coil Weight | WTc | g | 660.0 |
| Magnet Weight | WTf | g | 8200.0 |
| Total Motor Weight | Wta | g | 8860.0 |
| Total Motor Length | L | mm | 114.5 |
| Outer Diameter | ФD | mm | 133.0 |
