Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

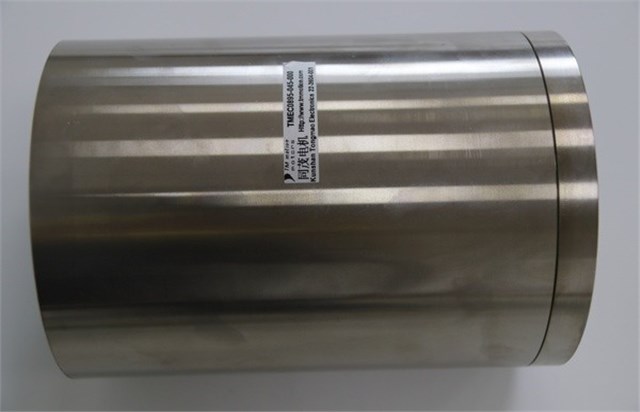

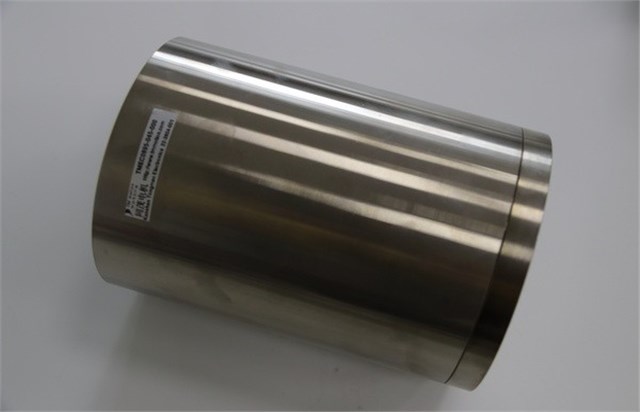

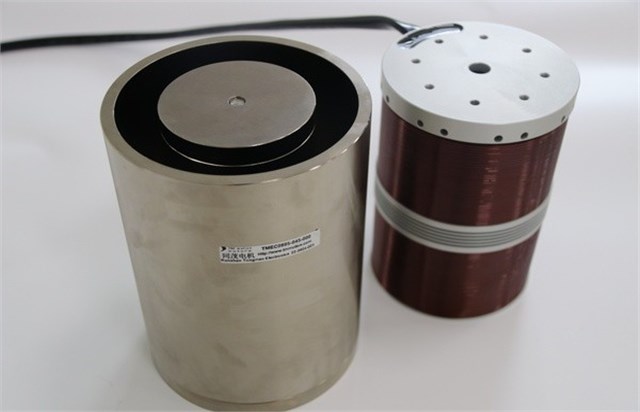

| Product Name | - | - | TMEC0895-045-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 1.2 |
| Peak Voltage | Vp | VOLTS(V) | 29.4 |
| Peak Current | Ip | AMPS(A) | 24.5 |
| Force Constant | Kf | N/A | 36.5 |
| Back EMF Constant | Kb | V/M/Sec | 36.5 |
| Inductance | L | mH(millihenry) | 1.9 |
| Peak Force | Fp | N(Newton) | 895.0 |
| Continuous Thrust | Fc | N(Newton) | 265.2 |
| Motor Constant | Ka | N/√W | 33.3 |
| Electrical Time Constant | Te | ms(millisecond) | 1.6 |
| Peak Power | Pp | W(Watt) | 721.5 |
| Peak Displacement | S | mm(millimeter) | 45.0 |
| Single-sided Air Gap | CL | mm(millimeter) | 4.0 |
| Thermal Resistance | θth | C/W(°C/W) | 1.5 |
| Maximum Winding Temperature | Tmax | C(°C) | 120.0 |
| Coil Weight | WTc | Kg(Kilogram) | 2.3 |
| Magnet Weight | WTf | Kg(Kilogram) | 7.9 |
| Total Motor Weight | Wta | Kg(Kilogram) | 10.2 |
| Overall Motor Length | L | mm(millimeter) | 221.7 |
| Outer Diameter | ФD | mm(millimeter) | 119.6 |
