Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

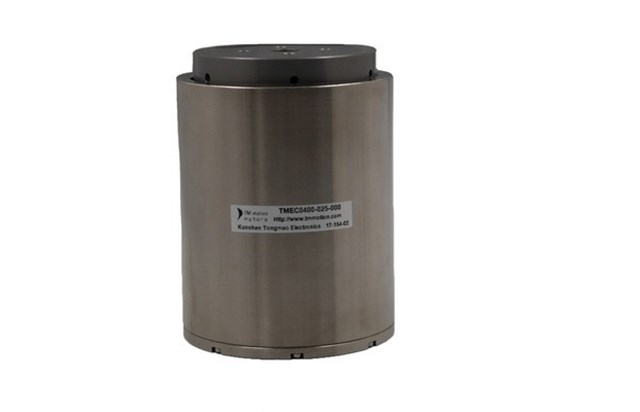

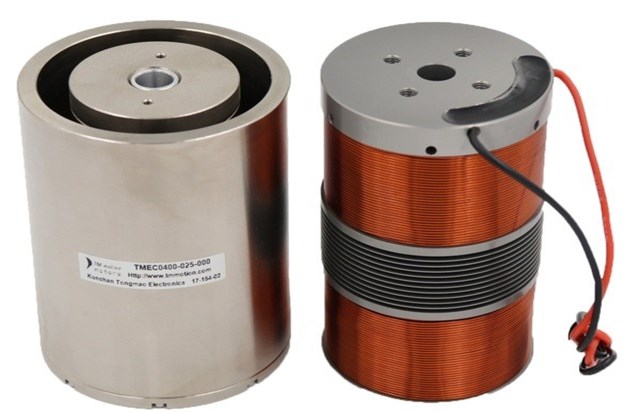

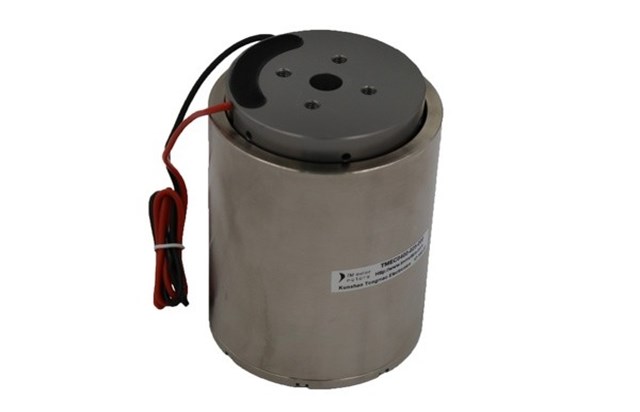

| Product Name | - | - | TMEC0400-025-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 2.7 |
| Peak Voltage | Vp | VOLTS(V) | 28.5 |
| Peak Current | Ip | AMPS(A) | 10.6 |
| Force Constant | Kf | N/A | 38.0 |
| Back EMF Constant | Kb | V/M/Sec | 38.0 |
| Inductance | L | mH | 5.0 |
| Peak Force | Fp | N | 400.0 |
| Continuous Thrust | Fc | N | 170.0 |
| Motor Constant | Ka | N/√w | 23.2 |
| Electrical Time Constant | Te | ms | 1.8 |
| Peak Power | Pp | W | 302.0 |
| Peak Displacement | S | mm | 25.0 |
| Single-sided Air Gap | CL | mm | 0.5 |
| Thermal Resistance | θth | °C/W | 2.3 |
| Maximum Winding Temperature | Tmax | °C | 150.0 |
| Coil Weight | WTc | g | 740.0 |
| Magnet Weight | WTf | g | 2470.0 |
| Total Motor Weight | Wta | g | 3210.0 |
| Overall Motor Length | L | mm | 135.0 |
| Outer Diameter | ФD | mm | 80.0 |
| Center Hole Diameter | Фd | mm | 11.0 |
