Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

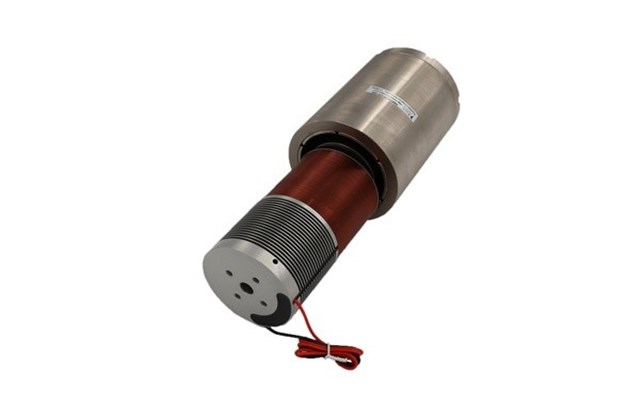

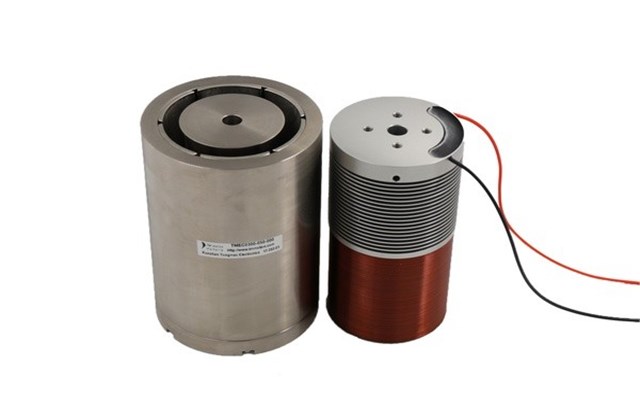

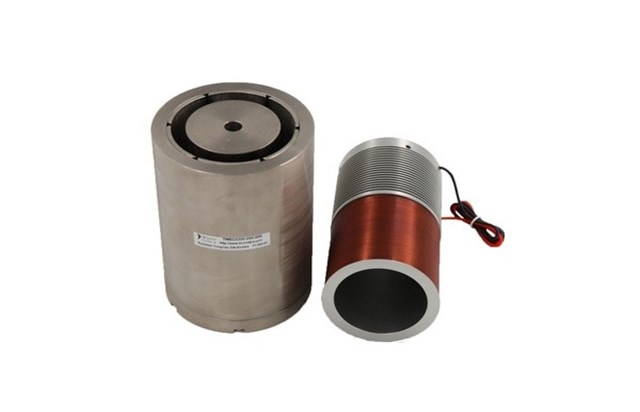

| Product Name | - | - | TMEC0300-050-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 9.5 |
| Peak Voltage | Vp | VOLTS(V) | 116.0 |
| Peak Current | Ip | AMPS(A) | 12.2 |
| Force Constant | Kf | N/A | 24.5 |
| Back EMF Constant | Kb | V/(m·s) | 24.5 |
| Inductance | L | mH | 20.0 |
| Peak Force | Fp | N | 300.0 |
| Continuous Thrust | Fc | N | 56.0 |
| Motor Constant | Ka | N/√W | 8.0 |
| Electrical Time Constant | Te | ms | 2.1 |
| Peak Power | Pp | W | 1415.0 |
| Peak Displacement | S | mm | 50.0 |
| Single-side Air Gap | CL | mm | 0.4 |
| Thermal Resistance | θth | C/W(℃/W) | 2.5 |
| Maximum Winding Temperature | Tmax | C(℃) | 150.0 |
| Coil Weight | WTc | g | 700.0 |
| Magnet Weight | WTf | g | 5150.0 |
| Total Motor Weight | Wta | g | 5850.0 |
| Total Motor Length | L | mm | 186.9 |
| Outer Diameter | ФD | mm | 93.0 |
| Center Hole Diameter | Фd | mm | 10.0 |
