Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

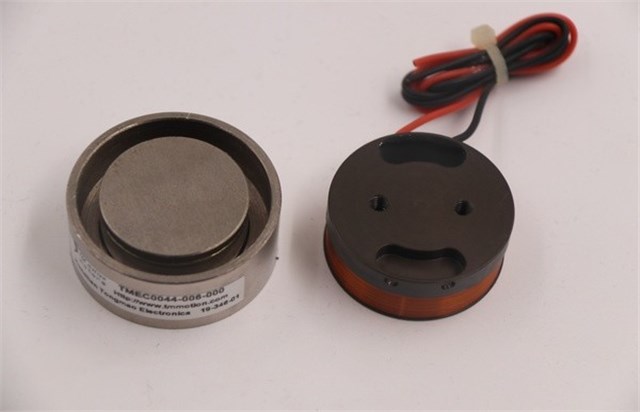

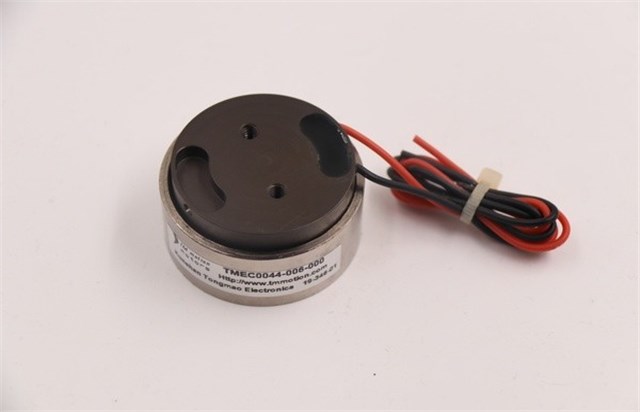

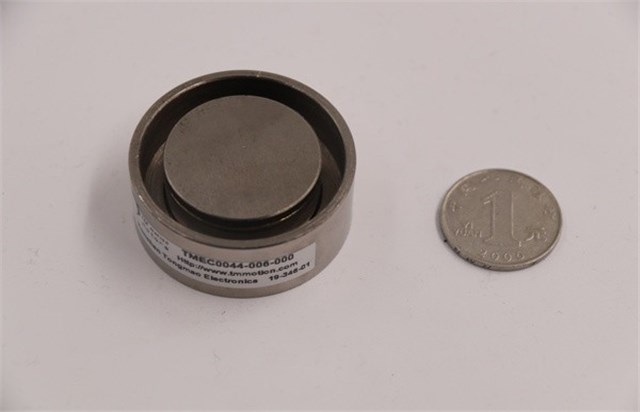

| Product Name | TMEC0044-006-000 Voice Coil Motor | ||
| DC Resistance | R | OHMS(Ω) | 3.7 |
| Peak Voltage | Vp | VOLTS(V) | 19.2 |
| Peak Current | Ip | AMPS(A) | 5.2 |
| Force Constant | Kf | N/A | 8.5 |
| Back EMF Constant | Kb | VOLTS/METER/SECOND(V/(m/s)) | 8.5 |
| Inductance | L | MILLIHENRY(mH) | 1.0 |
| Peak Force | Fp | NEWTON(N) | 44.0 |
| Continuous Thrust | Fc | NEWTON(N) | 12.6 |
| Motor Constant | Ka | NEWTON PER SQUARE ROOT WATT(N/√W) | 4.4 |
| Electrical Time Constant | Te | MILLISECOND(ms) | 0.27 |
| Peak Power | Pp | WATT(W) | 100.0 |
| Peak Displacement | S | MILLIMETER(mm) | 6.0 |
| Single-sided Air Gap | CL | MILLIMETER(mm) | 0.4 |
| Thermal Resistance | θth | DEGREE CELSIUS PER WATT(°C/W) | 15.4 |
| Maximum Winding Temperature | Tmax | DEGREE CELSIUS(°C) | 155.0 |
| Coil Weight | WTc | GRAM(g) | 43.0 |
| Magnet Weight | WTf | GRAM(g) | 180.0 |
| Total Motor Weight | Wta | GRAM(g) | 223.0 |
| Total Motor Length | L | MILLIMETER(mm) | 31.4 |
| Outer Diameter | ФD | MILLIMETER(mm) | 44.5 |
