Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

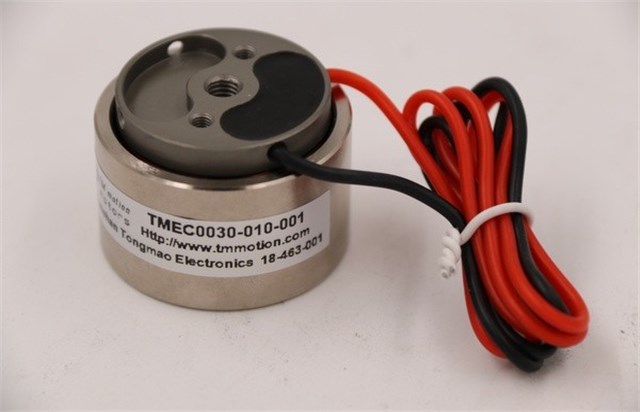

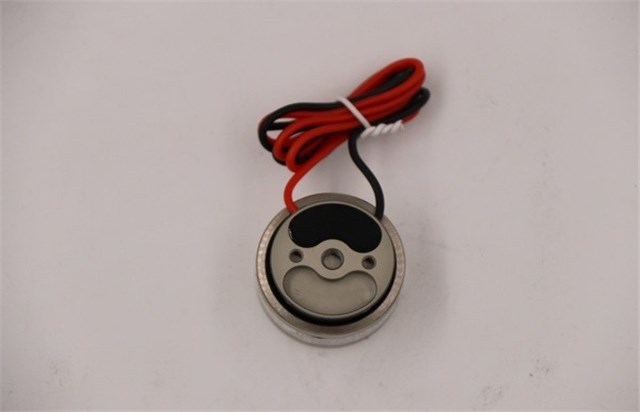

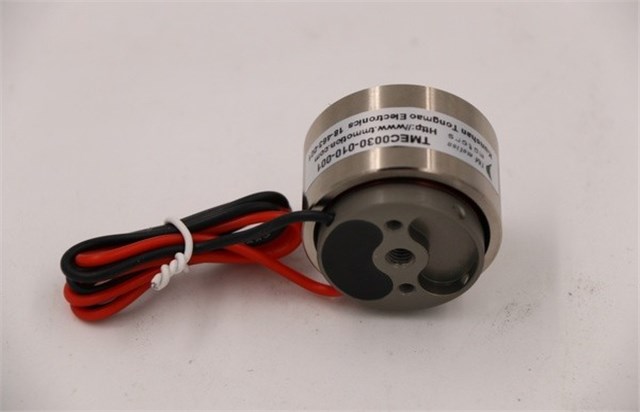

| Product Name | - | - | TMEC0030-010-001 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 0.52 |
| Peak Voltage | Vp | VOLTS(V) | 7.6 |
| Peak Current | Ip | AMPS(A) | 14.6 |
| Force Constant | Kf | N/A | 2.02 |
| Back EMF Constant | Kb | VOLTS PER METER PER SECOND(V/m/s) | 2.02 |
| Inductance | L | MILLIHENRY(mH) | 0.16 |
| Peak Force | Fp | NEWTON(N) | 29.5 |
| Continuous Thrust | Fc | NEWTON(N) | 7.9 |
| Motor Constant | Ka | NEWTON PER SQUARE ROOT WATT(N/√W) | 2.8 |
| Electrical Time Constant | Te | MILLISECOND(ms) | 0.31 |
| Peak Power | Pp | WATT(W) | 110.9 |
| Peak Displacement | S | MILLIMETER(mm) | 10.0 |
| Single-sided Air Gap | CL | MILLIMETER(mm) | 0.5 |
| Thermal Resistance | θth | DEGREE CELSIUS PER WATT(°C/W) | 15.5 |
| Maximum Winding Temperature | Tmax | DEGREE CELSIUS(°C) | 150.0 |
| Coil Weight | WTc | GRAM(g) | 27.0 |
| Magnet Weight | WTf | GRAM(g) | 125.0 |
| Total Motor Weight | Wta | GRAM(g) | 152.0 |
| Total Motor Length | L | MILLIMETER(mm) | 36.7 |
| Outer Diameter | ФD | MILLIMETER(mm) | 35.0 |
