Product Introduction
| Parameter | Symbol | Unit | Value |
|---|---|---|---|

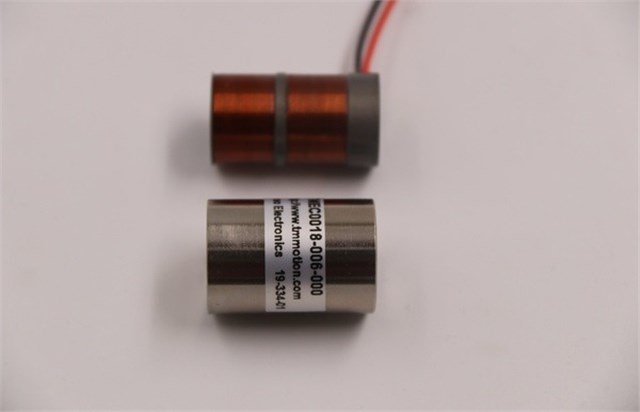

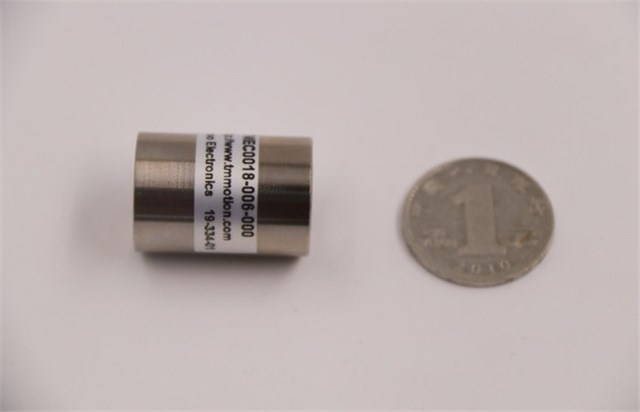

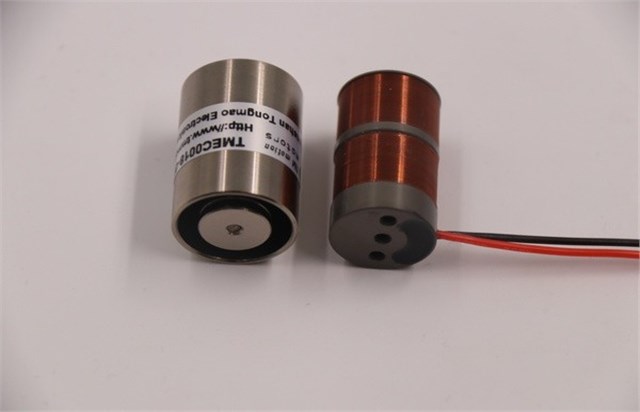

| Product Name | - | - | TMEC0018-006-000 Voice Coil Motor |
| DC Resistance | R | OHMS(Ω) | 5.5 |
| Peak Voltage | Vp | VOLTS(V) | 18.0 |
| Peak Current | Ip | AMPS(A) | 3.3 |
| Force Constant | Kf | N/A | 5.6 |
| Back EMF Constant | Kb | V/(m·s) | 5.6 |
| Inductance | L | mH | 0.73 |
| Peak Force | Fp | N | 18.3 |
| Continuous Thrust | Fc | N | 5.64 |
| Motor Constant | Ka | N/√W | 2.4 |
| Electrical Time Constant | Te | ms | 0.13 |
| Peak Power | Pp | W | 58.7 |
| Peak Stroke | S | mm | 6.0 |
| Single-sided Air Gap | CL | mm | 0.5 |
| Thermal Resistance | θth | ℃/W | 17.0 |
| Maximum Winding Temperature | Tmax | ℃ | 120.0 |
| Coil Weight | WTc | g | 16.0 |
| Magnet Weight | WTf | g | 38.0 |
| Total Motor Weight | Wta | g | 54.0 |
| Total Motor Length | L | mm | 40.5 |
| Outer Diameter | ФD | mm | 20.0 |
